옵션정보
[(350852)110x140 12v and 24v]
[(691)90x120 12V]
[(29)80x90 24V]
[(193)80x90 12V]
[(175)135x200 12v and 24v]
[(366)110x170 12v and 24v]
[(10)90x120 24V]
상품정보
- 브랜드 이름: Gcfix
- 원산지: 중국
- 고농도 화학 물질: 없음
- 기타 부품 번호: None
- 자동차 제조국: China
- 유형: 전기 히터
- 특징: Diesel Filter Heater
- 교류 부품 번호: None
- 부품: 조립
- 제조업체 부품 번호: None
- Material: Stainless steel
- Voltage: 12V / 24V
- Rated power: 120W
- Constant temperature: 85 Degrees celsius
- Heater diameter: Adjustable
- Application: Diesel Filter
- Led light: Yes
- On/Off Switch: Yes
- Fuse box: Yes
- Relay with socket: Yes
- Universal type: Yes
Universal Adjustable 120W Diesel Filter Heater 12V 24V for Car Truck Diesel Vehicle Winter Diesel Filter Preheater
Description
Voltage:12V / 24V
Rated power: 120W
Material: Stainless steel
Heater constant temperature: 85 Degrees celsius
Heater diameter: Adjustable
Application: Vehicle diesel filter

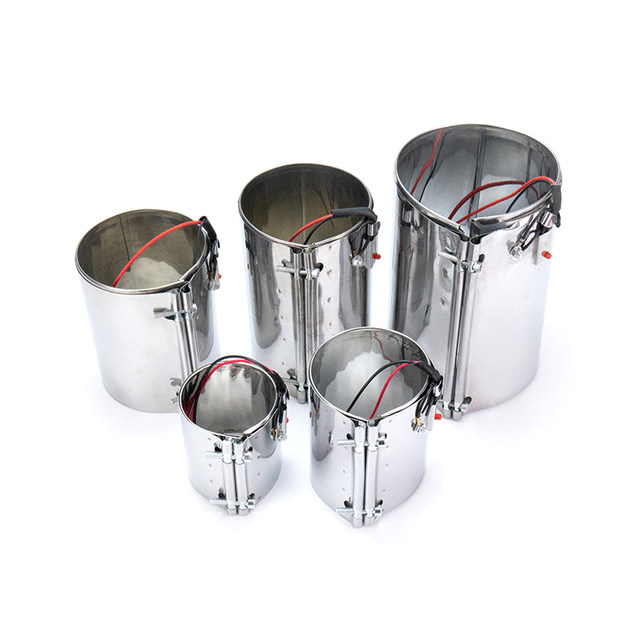

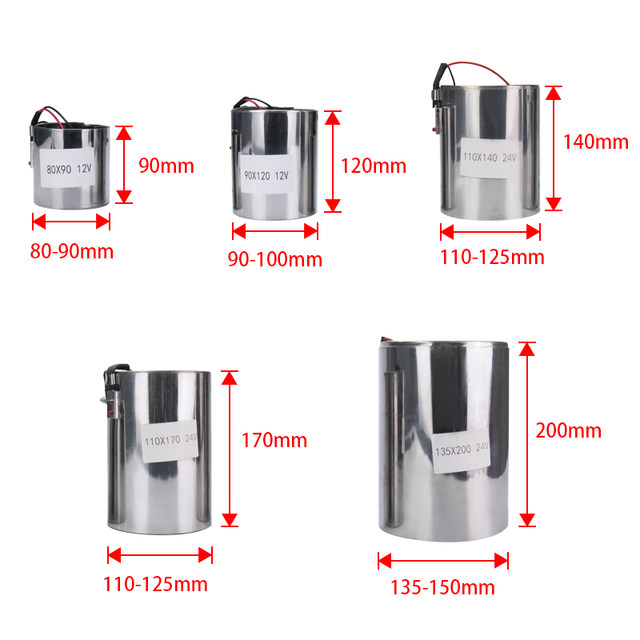

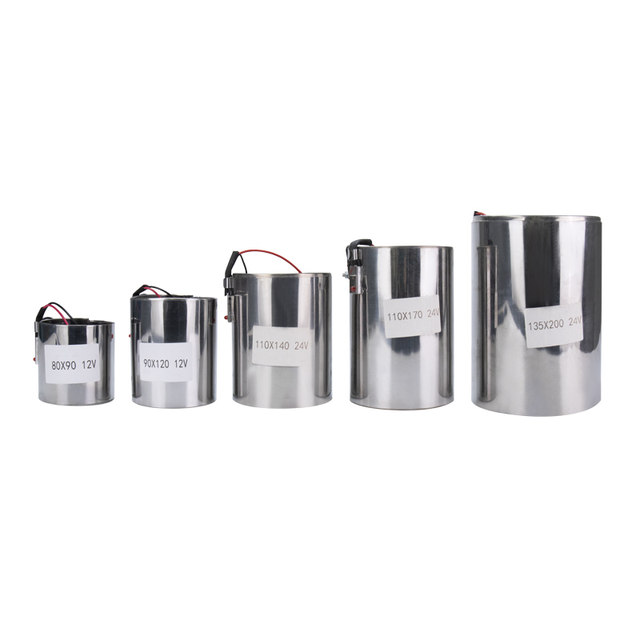

Size
Model Diameter x Height Adjustable diameter range
80x90 80 x 90mm 80-90mm (12V or 24V)
90x120 90 x 120mm 90-100mm (12V or 24V)
110x140 110 x 140mm 110-125mm (12V and 24V universal)
110x170 110 x 170mm 110-125mm (12V and 24V universal)
135x200 135 x 200mm 135-150mm (12V and 24V universal)
How to pick size?
According to your vehicle diesel filter diameter. Height is not the key problem. Different height heaters also works.
Temperature information
When temperature reach 85 Degrees celsius,heater turns OFF automatically.
When temperature below 50 Degrees celsius,heater turns ON automatically.
Note
1. Wire needs to be 1.5 square or above copper wire.
2. Cleaning your auto filter before installing.
3. Only suitable for metal filter,not for plastic filter.
4. Switch is 20A. It can control two heaters.
5. Heater is not waterproof. So please pay attention. Waterproof glue tape is good for you.

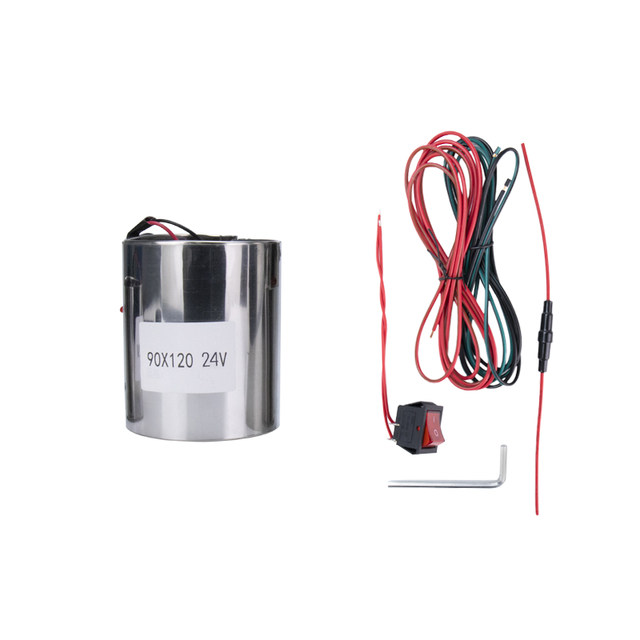

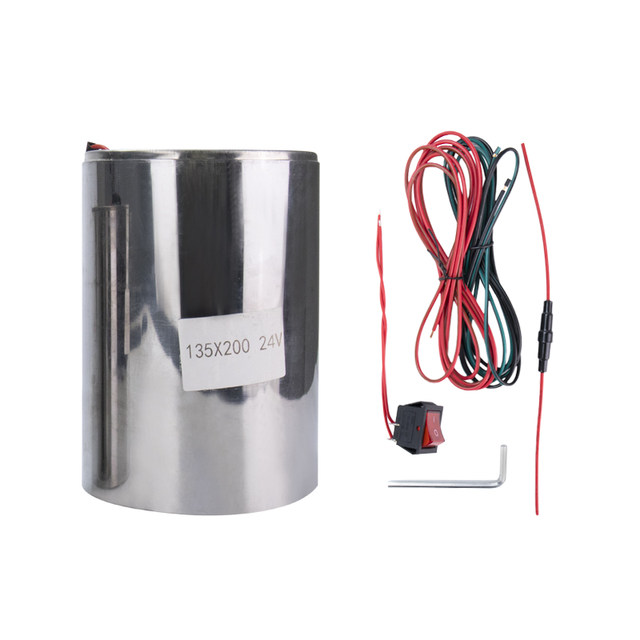

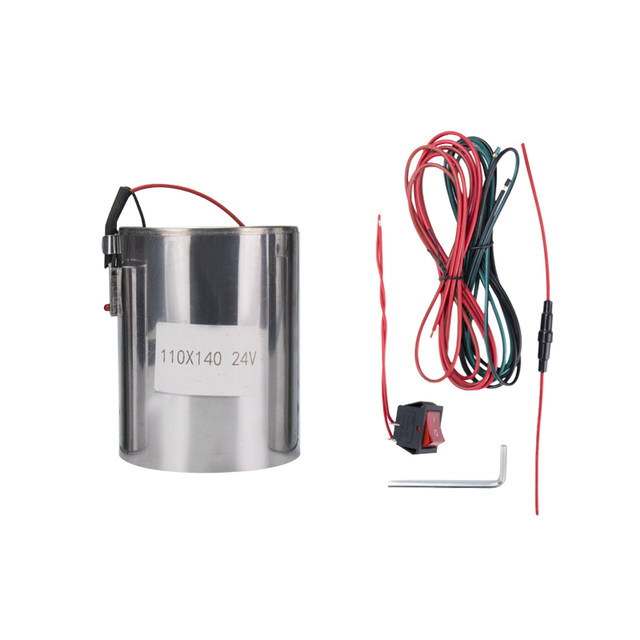

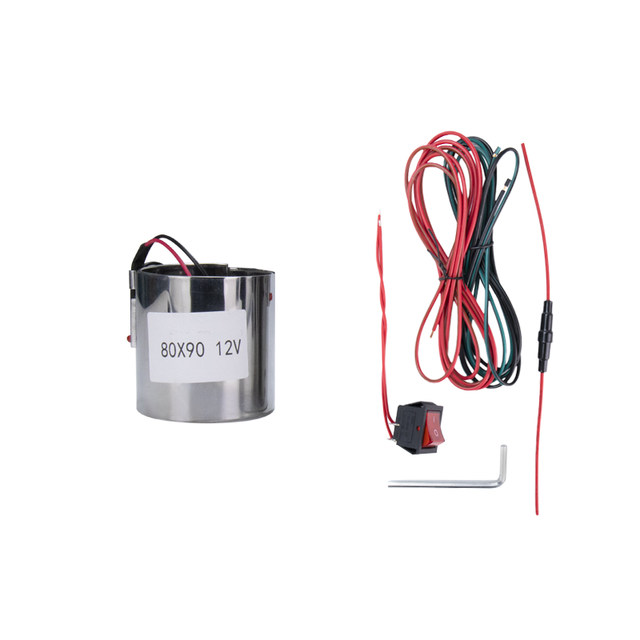

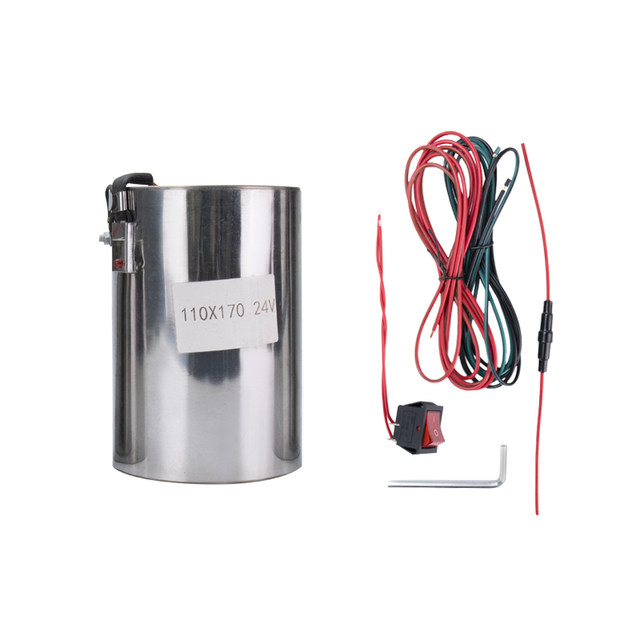

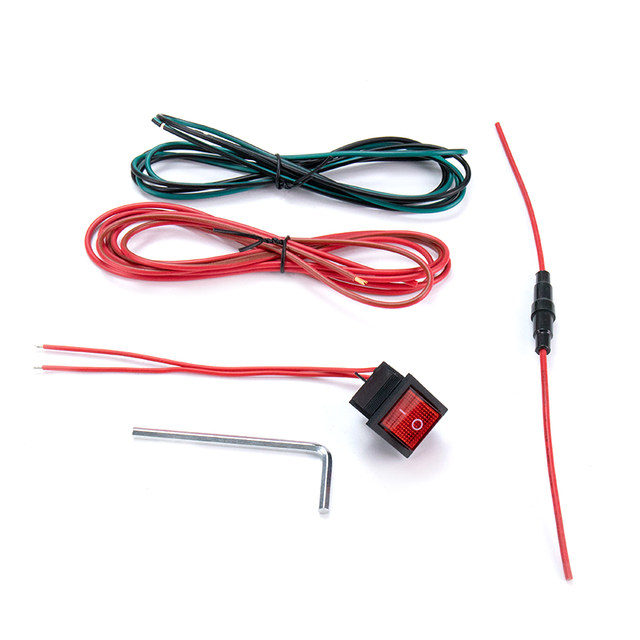

Product list
1 x Heater
1 x Positive wire
1 x Negative wire
2 x Clamps

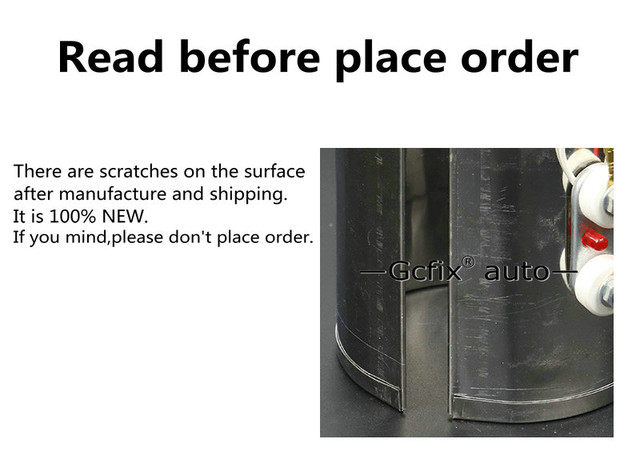

Pay attention:
There are some scratches on the heater. If you mind,please don't place order. All of them are brand new.

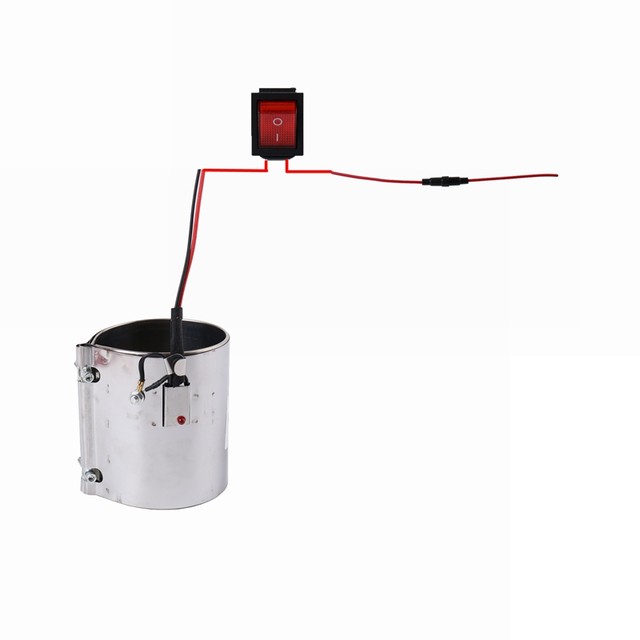

Wiring diagram
1. Heater black wire - Ground
2 .Heater red wire - Switch wire (Both wire are ok)
3 .Switch wire - vehicles positive

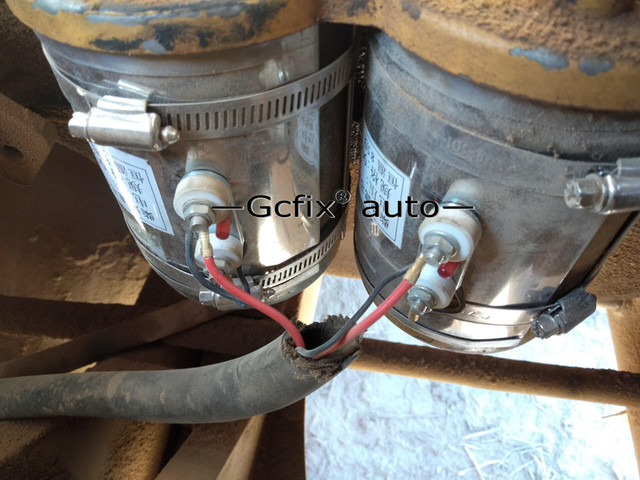

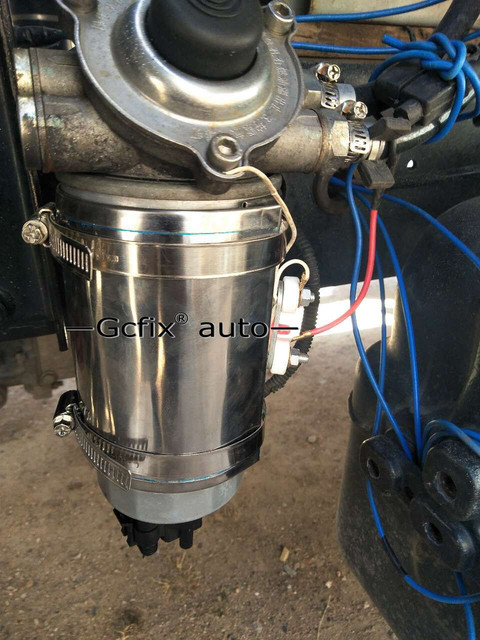

Installation drawing

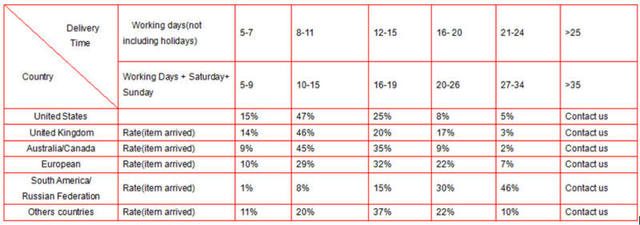

Shipping
