Mini Video Capture Card USB 2.0 HDMI Video Grabber Record Box fr PS4 Game DVD Camcorder HD Camera Recording Live Streaming Video Card HDMI Video Capture Card USB Box HDMI Capture Card Board Capture Video Cards Grabber Recorder for PS4 Game Streaming

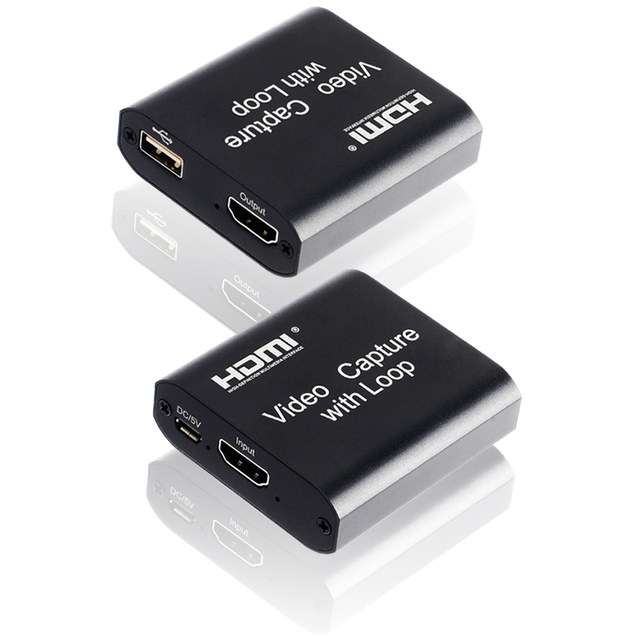

4K HDMI Video Capture Card 1080p Board Game Capture Card USB 2.0 Recorder Box Device for Live Streaming Video Recording Loop Out

No MIC version:

Description:
The video capture can capture both HDMI video and HDMI audio, sending audio and video signals to computers and smart phones for preview and storage. Also can push to online live platfroms to live at the same time, Suitable for HD acquisition, teaching live streaming, game live streaming, Study video capture, Films capture etc.

Features:
1. Support HDMI loop out;
2. Support input max resolution 4K 30fps, the loop out resolution is same as input;
3. Support capture max resolution 1080P 30fps;
4. Support AWG26 HDMI standard cable: input up to 15 meters,
(1080P and below resolution);
5. Support most acquisition software, such as VLC、OBS 、Amcap, etc;
6. Support Windows、Linux and MacOS;
7. Conform to USB Video and UVC standard;
8. Conform to USB Audio UAC standard;
9. Compact and portable.

Specifications:
HDMI resolution: input & loop out Max 4K/30Hz
Support video format: 8/10/12bit Deep color
Video output format: YUV、JPEG
Video Capture resolution: Max 1080P/30Hz
Support audio format: L-PCM
Input cable distance: ≤15m,AWG26 HDMI standard cable
Max working current: 0.7A/5VDC
Operating Temperature range: (-10 to +55℃)
Dimension (L x W x H): 59x56x19 (mm)
Weight: 52g

Connection and Operation:
1. Connect the UHD signal source to the HDMI input of the video capture with one HDMI cable.
2. Connect the display device to the HDMI output of the video capture with one HDMI cable.
3. Connect PC USB port to the USB output of the video capture with one USB cable.
4. Operation steps for USB video capture(OBS): Open the software→Choose sources of “Video capture Device”→Set the size of image→Choose “Studio Mode”(double window)→Choose “Start Recording”.

Note:
Computer hardware configuration requirements
CPU: PC i5-3400 or above ；NB i7-3537U 2.0GHZ or above
Graphics card: PC NVIDIA GT630 or above；NC NVIDIA GT735M or above
Run memory: 4G RAM.

You`ll receive:

1 x Video Capture Card
1 x User Manual
1 x USB Male to Male Cable
1 x Micro USB Cable

With MIC version:

Description:
This USB capture card can collect HDMI audio and video. HDMI audio and video signals can be transmitted to the computer and smartphone for preview and storage.

Suitable for high-definition acquisition, teaching recording, medical imaging, etc.

Features:
1. Support input resolution up to 4K
2. Support output resolution up to 1080P
3. One HDMI input, One HDMI loop out, Watching and Recording
4. One Microphone input
5. One 3.5mm stereo output
6. Support 8/10/12 bit color depth
7. Support AWG26 HDMI standard cable, the maximum input transmission distance is 15 meters (1080P and below resolution)
8. Support most acquisition software, such as VLC, OBS, Amcap, etc.
9. Support Windows, Android and MacOS
10. Complies with USB video UVC specifications
11. Complies with USB audio UAC specifications
12. No external power supply, compact size, easy to carry

Specification:
HDMI resolution: Maximum input support 4K
Video input format: 8/10/12-bit color depth
Video output mode: MJPEG
Video output resolution: Maximum output resolution 1080P @ 60Hz
Support audio format: PCM
Input cable length. ≤15m, AWG26 HDMI standard cable
Maximum working current: 0.4A / 5V DC
Operating temperature range: (-10 to + 55 ℃)
Product size(LxWxH): 68x27x9(mm)
Product weight: 100g

Note:
Computer hardware configuration requirements
CPU: PC i5-3400 or above; NB i7-3537U 2.0GHZ or above
Graphics card: PC NVIDIA GT630 or above; NC NVIDIA GT35M or above
Storage: 4G RAM

You`ll receive:

1 x Video Capture Device
1 x User Manual
1 x USB Cable Male to Male
