Product:

After installation, you can request a software setup tutorial

Common problem handling:



Doesn`t light up, no response, no signal on blue screen?



If it is a black screen and there is no response at all, then check whether the power supply is connected properly. You can first try to enter the blue screen standby interface without plugging in HDMI. If there is no signal, check the connection of the driver board cable and the connection of the HDMI cable. It is best to test whether to enter the desktop without connecting the extension cable. You can also right-click in the computer system to display the settings and see if the screen is detected. If the screen is not bright, the first is that the cable is not connected properly, and the second is the driver. Problem, uninstall the driver in the official download and install again.



Does the screen have black stripes or something?



Generally, it is caused by not connecting the cable properly. If the cable is checked and there is no problem, you can plug in the key board and press the 2 buttons close to the infrared receiver at the same time to enter the engineering mode and adjust the VCOM parameters. How much, just adjust to normal and perfect display



Product:

Computer temperature monitoring?Voltage?Fan rotation?Game FPS

Every time any wire is inserted, it must be turned off and power off, otherwise it will not be guaranteed if it is burnt out.

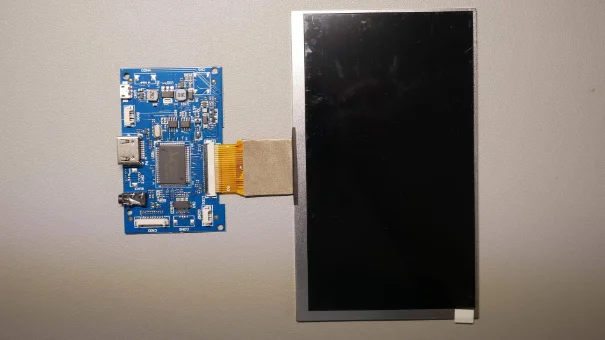

The display screen is directly connected to the driver board:



Note: The black clip at the connection of the drive board can be opened. After inserting the cable, press it down to lock it tightly. The contact point at the drive board is facing up! ! ! ! ! ! ! ! ! ! ! ! ! !





Schematic diagram of aviation HDMI wiring in the chassis:



Pay attention to the front and back of the picture and whether it is inserted neatly!



USB 9PIN wiring method in the chassis: connect to the 9pin interface with USBXXX written below, pay attention to the position of the missing pins to be aligned
