• 포장: 아니다
  • 차폐: 조합
  • 외부 직경: HDCP 2.2 to 1.4
  • 포장: 폴리백
  • 신청: 프로젝터,DVD 플레이어,컴퓨터,Multimedia,TV Box,MONITOR,텔레비전
  • 유형: HDMI 호환 케이블
  • 연결관 B: HDMI 호환
  • 연결관 A: HDMI 호환
  • 모델 번호: OCV0#30
  • 성: 여성-여성
  • 브랜드 이름: HDmatters
  • 근원: CN (정품)


Remarks:

1) this is a HDCP converter, it is not a resolution down or upscaler. It can not downscale HDMI 2.0 4KX2K/60HZ to 4KX2k/30hz. also it can not upscale 1080P or 4kX2K/30hz to 60HZ.. it can only downscale HDCP 2.2 to HDCP 1.4.
2)if your HDMI Display can not work support 4kX2K/60HZ under HDCP 1.4, this converter wont work... Take PS4 pro for example, if your PS4 pro`s 2160P is grey when it connected to 4K TV, this converter wont work. Your PS4 pro only work under this condition:

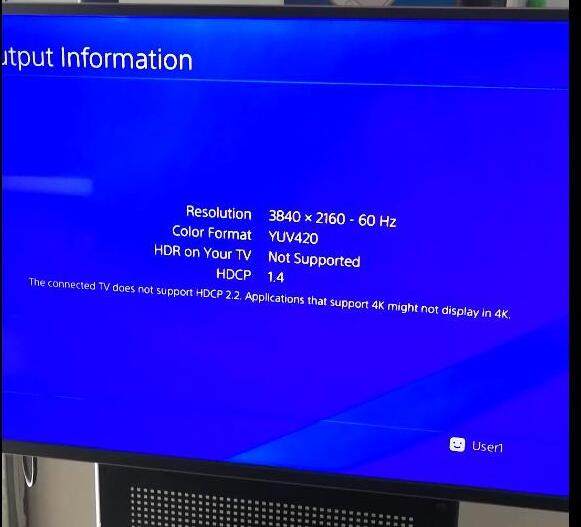

1) your Ps4 pro`s 2160P option is not in grey, but when you check PS4 pro`s output information,you will see:the connected TV does not support HDCP 2.2 ,application that support 4K might not display in 4K.then this HDCP converter will work..

And Click Display information of PS4 pro(PS4 pro will jump warning)

After connect the HDCP 2.2 to HDCP 1.4 converter:




Descriptions:

This 4K HDCP 2.2 to 1.4 Converter is the definitive solution for playback of new 4K HDCP 2.2 encoded content on 4K displays with the old HDCP 1.4 standard. Most 4K televisions sold in the last few years do not support HDCP 2.2, but the  HDCP Converter keeps your equipment relevant and running. The Converter is also a great compatibility solution for AV distribution systems running a mix of new and old 4K displays.


Features:

Play todays content on your legacy 4K display
Converts HDCP 2.2 to 1.4
Supports 4K@60Hz and Deep Color
Plug and play simplicity
Small and portable


Specifications:

HDMI input: HDCP2.2
HDMI output: HDCP1.4
Video Format Supported: DTV/HDTV:480i/576i/480P/576P/720P/1080i/1080P/4Kx2K/3D video support
Maximum video Format: 4Kx2K@60Hz, YUV 4:2:0
HDMI input: 1xHDMI (Standard Type A connector)
HDMI output: 1xHDMI (Standard Type A connector)
Support Video Color Format: xv-YCC/deep color 36bit
Support Audio Format: DTS-HD Master Audio, Dolby true-HD. LPCM
Power consumption: 1.5 watts(Maximum)
Dimension: (L×W×H) 70.2*60.2*21.1mm
Net Weight: 120g(pcs)
