- 프로세서 브랜드: Allwinner
- 통합 기능: bluetooth
- 메모리 용량: 512mb
- 모델 번호: Banana Pi M2 Zero
- 데모 보드 유형: FPGA
- 브랜드 이름: SHCHV
- 근원: CN (정품)
- CPU: H3 Quad-core Cortex-A7 H265/HEVC 1080P
- GPU: Mali400MP2 GPU @600MHz,Supports OpenGL ES 2.0
- Memory (SDRAM): 512M DDR3(shared with GPU)
- Onboard Storage: TF card (Max. 64GB)
- Onboard Network: NOPE (but can extension with PIN define)
- PoE power: NOPE
- Onboard flash: NOPE
- Video decoding: 1080p@60fps,H.264 Video encoding 1080p@30fps,H.264
- Video input: A CSI input connector Camera
- Video Outputs: mini HDMI-compatible 1.4,1080P@30fps, DHCP
- Audio Output: Mini HDMI-compatible
- Power Source: Micro USB with 5V/2A
- USB 2.0 Ports: one USB 2.0 OTG
- Buttons: Power Button, Reset Button
- Low-level peripherals: 40 Pins Header,compatible with Raspberry Pi 3
- uart GPIO(1x3) pin: UART, ground
- LED: Power led & Status led
- IR: N/A
- Supported OS: android linx
- Product size: 65mm x 30mm
- Weight: 15g
옵션정보
[(200003982)Option 1]
[(203125848)Option 2]
[(11300236399)Option 3]
[(11300236400)Option 4]
[(11316372534)Option 5]
[(200003983)Option 6]
[(200003984)Option 7]
[(200003985)Option 8]
[(200003986)Option 9]
[(202906809)Option 10]
Banana Pi M2 Zero Quard-core Singe Board 512MB DDR 3 SDRAM Development Board Mini HDMI-compatible Same as Raspberry Pi Zero W
【Introduce】
The Banana Pi M2 Zero is an ultra compact single board computer which measures only 60mm*30mm. Its external interfaces are the same as the Raspberry Pi Zero W, and it will fit almost all cases and accessories for the Zero W. It uses the quad-core Cortex A7 Allwinner H3 processor, with 512MB RAM. It‘s ideal for light-weight systems and space-limited applications. Like other members of the Banana Pi family, it supports both Linux and Android operating systems.
【Features】
Allwinner H3
Quad-Core Cortex-A7
512MB DDR3 SDRAM
WiFi & Bluetooth-Compatible Onboard
Mini HDMI-Compatible
40 Pin Raspberry Pi-compatible GPIO
Same size as Raspberry Pi Zero W
【Hardware Specifications】
【More Information】
Online Wiki developments：https://wiki.banana-pi.org/Banana_Pi_BPI-M2_ZERO
【Aluminum Case】
【Accessories】
【Package list】
Option 1：
1 x Banana Pi M2 Zero
Option 2：
1 x Banana Pi M2 Zero
2 x Heat Sink
Option 3：
1 x Banana Pi M2 Zero
2 x Heat Sink
1 x Micro USB to OTG Cable
1 x Mini HDMI-compatible Adapter
1 x 40 Pin GPIO Header
Option 4：
1 x Banana Pi M2 Zero
1 Set x Aluminum Case
Option 5：
1 x Banana Pi M2 Zero
1 x Micro USB to OTG Cable
1 x Mini HDMI-compatible Adapter
1 Set x Aluminum Case
Option 6：
1 x Banana Pi M2 Zero
1 x Micro USB to OTG Cable
1 x Mini HDMI-compatible Adapter
1 Set x Aluminum Case
1 x HDMI-compatible Cable
1 x Power Plug
1 x Switch USB to Micro USB Cable

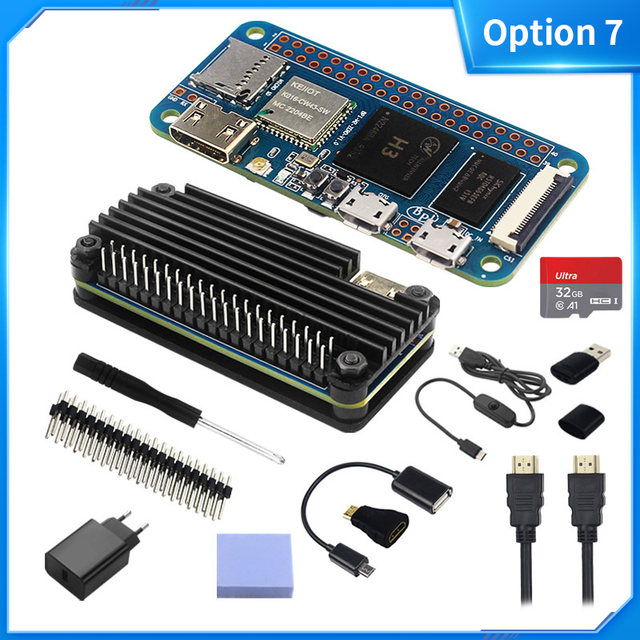

Option 7：
1 x Banana Pi M2 Zero
1 x Micro USB to OTG Cable
1 x Mini HDMI-compatible Adapter
1 Set x Aluminum Case
1 x HDMI-compatible Cable
1 x Power Plug
1 x Switch USB to Micro USB Cable
1 x 32GB Micro SD-compatible Card
1 x Micro SD-compatible Card Reader
Option 8：
1 x Banana Pi M2 Zero
1 x Micro USB to OTG Cable
1 x Mini HDMI-compatible Adapter
1 Set x Aluminum Case
1 x HDMI-compatible Cable
1 x Power Plug
1 x Switch USB to Micro USB Cable
1 x 64GB Micro SD-compatible Card
1 x Micro SD-compatible Card Reader

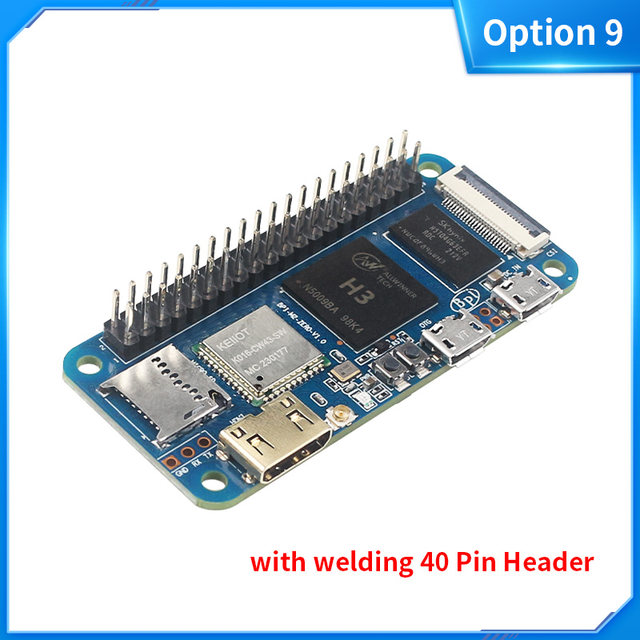

Option 9：
1 x Banana Pi M2 Zero
（with welding 40 Pin Header）
Option 10：
1 x Banana Pi M2 Zero
（with welding 40 Pin Header）
2 x Heat Sink
