- 브랜드 이름: XDrone
- 디스플레이 비율: 16:9
- 브래킷 유형: 다른
- 화면 크기: 15.6
- 높은 동적 범위: HDR10
- 해상도: 1920 x 1080
- 스크린 곡률: NONE
- 근원: CN (정품)
- 수평 시야각: 178°
- 모델 번호: M156DS
- 패널 유형: IPS
- 인터페이스 유형: TYPE-C
- 스크린 유형: LED
- 스피커 내장: 그렇습니다
- 밝기: 300cd/m
- 신청: 2 바탕 화면
- 대조 비율: 1000:1
- 특징: USB 포트,스피커
- 제품 상태: 재고 있음
- 증명서: 세륨
- 재생률: 60HZ
- 응답 시간: 30ms
옵션정보
[(29)Standard version]
[(193)Upgraded version]
Free Gift Package

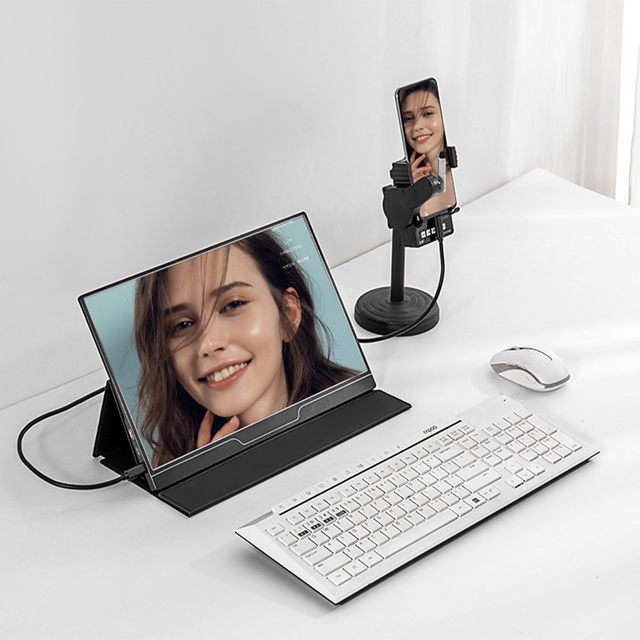

15.6 inch portable monitor
- Narrow Bezel, CNC aluminum alloy integral molding
- 1080p IPS, and support HDR
- Full-function Type-C--Type-C port for data and support reverse charging
- With USB OTG Port, plug-in keyboard or mouse, plug and play.
- Apply to PS3/PS4, Xbox, Switch, Digital Camera, Mobile-phone, desktop and laptop, etc devices which with H-D-M-I or Full-function Type-C output
Standard Package:
1X Monitor
1X Mini HDMI TO HDMI
1X Type-C TO Type-C
1X USB TO Type-C
|
Size |
15.6" |
|
|
Model Name |
M156DS |
|
|
Shell |
Craft |
CNC precision stamping |
|
Surface box |
0.8mm aviation aluminum |
|
|
bottom case |
1.5mm aviation aluminum |
|
|
LCD screen |
brand |
genuine BOE original package |
|
Model Specifications |
NV156FHM-N48 |
|
|
Types of |
IPS |
|
|
LCD panel |
Display size |
15.6" diagonal |
|
Backlight |
E-LED |
|
|
Brightness (max) |
300cd/m2 |
|
|
Brightness (typical) |
220cd/m2 |
|
|
Color gamut |
45% /72% (optional) |
|
|
Contrast (typical) |
800:1 (typical) |
|
|
Pixel pitch |
0.17925 (H) X 0.17925 (V) |
|
|
Resolution (H x V) |
1920*1080 |
|
|
Aspect ratio |
16:09 |
|
|
Response time (Overspeed) |
30ms |
|
|
Viewing angle LR, UD(CR>10) |
H 170/ V170 |
|
|
Panel surface |
matte |
|
|
Display color |
16.7 million colors |
|
|
Function |
Functional touch screen |
without |
|
MHL |
Yes |
|
|
PS5/Xbox/TV Box/Digital Camera |
Yes |
|
|
Adaptive Sync (free sync) |
Freesync 1920*1080@60hz |
|
|
Adaptive sync (free sync) port |
HDMI2.0 1920*1080@60hz |
|
|
No flicker |
Yes |
|
|
Blue light cut/low blue light mode |
Yes |
|
|
HDCP |
2.2 |
|
|
HDR |
HDR10 |
|
|
Interface and Maximum |
Refresh rate |
60 Hz |
|
Mini HDMI |
HDMI 2.0 1920*1080 60Hz |
|
|
Type C1 |
TYPE-C 3.1 1920*1080 60Hz |
|
|
Type C2 |
TYPE-C 3.1 1920*1080 60Hz |
|
|
|
Earphone |
Have |
|
Speakers (Typical) |
1.5w*2 |
|
|
Powered By |
Power consumption (max) |
7W |
|
Consumption (typical) |
6W |
|
|
Consumption |
0.5W |
|
|
AC power range |
AC 100-240V 50/60Hz |
|
|
Power indicator (ON) |
Green (LED) |
|
|
Power indicator (standby) |
red (LED) |
|
|
Power indicator (OFF) |
closure |
|
|
Operating conditions |
Temperature |
0℃ ~ 40℃ |
|
Humidity |
20% ~ 80%, non-condensing |
|
|
Package |
Machine Dimensions (W*D*H) |
367*5 (10) *220mm |
|
Box (W*D*H) |
402*61*275mm |
|
|
Outer box (6pcs) |
460*290*420mm |
|
|
net weight |
0.668kg |
|
|
Gross weight (including |
0.997kg |
|
|
Whole box |
1.596kg |
|
|
Rotate |
not applicable |
|
|
Pivot |
not applicable |
|
|
Magnetic attraction |
Be applicable |
|
|
VESA installation |
Not applicable |
|
|
Control |
Wheel control |
Press enter menu, up +, down -, |
|
display on screen |
Middle |
|
|
Colour |
Warm/Cool/User Color |
|
|
Shortcut mode |
Menu, dial up brightness, dial |
|
|
Accessories |
Type-C to Type-C cable |
1 |
|
USB-A to Type-C power cable |
optional |
|
|
HDMI to Mini HDMI |
1 |
|
|
Power Adapter |
5V3A (with cable) |
|
|
User Manual |
Optional |
