- 포장: 아니다
- 포장: 폴리백
- 신청: 컴퓨터,Multimedia,MONITOR,DVD 플레이어,프로젝터,텔레비전,TV Box,사진기
- 유형: HDMI 호환 케이블
- 연결관 B: HDMI 호환
- 연결관 A: HDMI 호환
- 모델 번호: New 2X2 TV Wall Controller
- 성: 여성-여성
- 브랜드 이름: Qkens
- 근원: CN (정품)
4K60hz New RS232 2x2 TV WALL CONTROLLER
Brand new and high quality,buy with confidence!
This 2x2 TV video wall controller,support 1-way HDMI input and 4 HDMI output, the main function is to divide a
complete HDMI,HD image signal into 4 blocks and assign to 4 video display unit (such as Rear projection unit,
LCD TV, etc.), Complete with 4 HDMI high-definition video display units to form a large dynamic image screen.
Features:
*Support 1 channel HDMI input
*Support HDMI 2.0 input
*Support 4 channel HDMI outputs
*Support input resolution up to 4K@60hz
*Support output resolution 1920x1080P@60hz
*Support multiple splicing modes, easy to operate, plug and play
*Note:
1. This product is only used for horizontal screens,If you use for vertical screen, pls contact us.
2. The 180 degree Flip function only works under 2x2 mode of the first row two screens.
The Package Content for 1PCS:
1. 2X2 TV wall controller x1
2. Power adapter x1
3. User Manual x1
4. Remote Controller without battery x1
No retail box and other accessories,if any need,pls contact us first

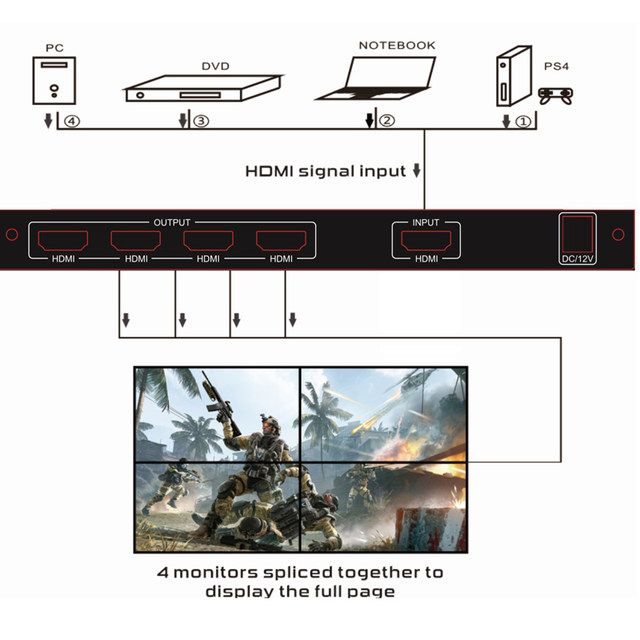

Connection Diagram:
