Important Note

There are 4 models optional, please confirm your M.2 SSD protocol before ordering.

(1)B-Key SATA - 6Gbps

Only support NGFF SATA protocol B key/M&B Key SSD, with 30cm type-c to USB 3.0 cable.

(2)M-Key NVMe - 10Gbps

Only support NVMe PCI-E protocol M key/M&B Key SSD, with 30cm C to C/A 2-in-1 date Cable.

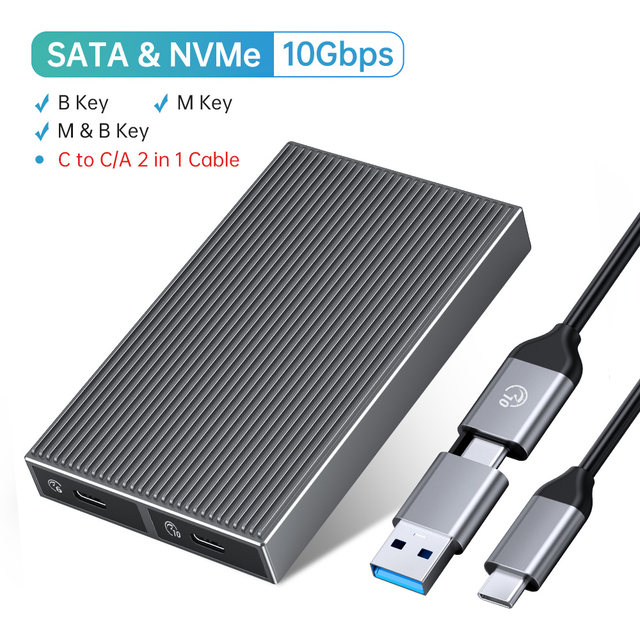

(3)NVMe SATA - Dual Bay

Support M.2 NVMe & NGFF SATA SSD Disk, with 30cm C to C/A 2-in-1 date Cable.

(4)Dual NVMe - Dual Bay

Only support NVMe PCI-E protocol M key/M&B Key SSD, with 30cm C to C/A 2-in-1 date Cable.

Product Specification:

¡¼Tool Free Installation¡½

All Aluminum alloy body with sliding SSD tray, tool free Installation. Make installation faster and more convenient.

¡¼Upgrade Cooling Efficiency-Cooling Vest¡½

The M.2 enclosure has been professionally designed, and a new metal heat dissipation vest with excellent heat dissipation effect is added, which wraps the SSD in multiple directions, and accurately guides the heat to the enclosure shell to dissipate heat. The heat dissipation efficiency is 20% higher than that of traditional metal sheets.

¡¼Upgraded C to C/A 2 in 1 Cable, Supports PD 60W Output¡½

This USB data cable has 2 output ports, USB C-A and USB C-C(10Gbps), which can be connected to computers, mobile phones, game consoles and other devices at will. The wire is 30cm long, which is more flexible and stable to use and has a longer life.

¡¼USB3.2 Gen2 10Gbps Speed¡½

M2 ssd adapter up to 10Gbps. High-speed M.2 NVME to USB 3.1 Gen2, perfect solution for data transfer and backup, the actual transfer speed depends on the speed of the SSD, the type of USB port, computer performance and NVMe media used, etc. The theoretical reading can reach 1200MB/s, and the HD movie transmission only takes 2.5 seconds.

¡¼Universal Compatible SSD Enclosure¡½

ORICO 10Gbps M.2 SSD Enclosure is compatible with M Key or M&B Key`s 2230 2242 2260 2280 M.2 PCIe NVMe SSD. SSD enclosure support Windows, Mac OS and Linux. Plug and play, no additional drivers or software required.

¡¼High-quality Main Control Chip¡½

ORICO nvme ssd enclosure Using high-performance controller IC, supports UASP acceleration protocol and Trim, SMART functions, which can effectively improve SSD speed, protect data operation, and extend SSD life.

Warm Reminder

1.M.2 SSD is NOT included.

2.NVMe model case is not compatible with NGFF SATA M.2 SSD, vice versa.

3. It is normal that the aluminum case heats up when using, and it doesn`t affect normal use.

4. For new unused SSD, it`s necessary to make a partition at first, otherwise it can not be recognized.

5. Always safely remove your disc before unplugging this product.

6. The M.2 SATA model does not come with a cooling Vest and thermal silicone pad.
