1. On-board MEMS microphone, providing sound input for Micro:bit, built-in LED indicator on the front, external bias circuit (power to ground) 33K:1K. Built-in speaker to play sound In addition to outputting sound through PWM on the pin, Micro:bit V2.2 also has an on-board electromagnetic speaker, which can output sound to complete more experiments
2. The logo on the front of the capacitive touch sensor becomes a metal capacitive touch sensor, which can return digital signals to Micro:bit V2.2 like a button. Provide up to 200MA current Built-in discrete voltage regulator chip, which can provide up to 200MA current for peripheral accessories, providing more powerful support for projects such as camel machine control
3. Compared with the previous generation Micro:bit v1.5, Micro:bit V2.2 has the same excellent and powerful functions. On the basis of the same functions, it adds functions such as speakers and microphones, allowing children to use sound and touch in the classroom. Get creative with ease
4. IOBIT V1.0 expansion board parameters. Power supply mode: from Microbit`s usb port, or Microbit`s battery holder. Working voltage: 3V. Output current: 40ma (do not use the iO port to drive high-current devices, it is easy to burn the Microbit, please use Robotbitv2.0 to drive high-current devices)
5. Serial port lead: serial port can be used for IO port mapping. I2C port lead: 19 and 20 pins can only be used as I2C function pins, and cannot be used as ordinary IO ports to read and write, because the bottom layer of the microbi is written to death. SPI port leads: 4, 15 (IO port can read and write)

Product: Micro: bit V2.2
Suitable for the crowd: students and enthusiasts above elementary school)
Processor: 512kb flash 128K RAM
Size: 43 x 52mm
Programming environment: online programming + local programming tools
Programming languages: makecode, Python, Scratch

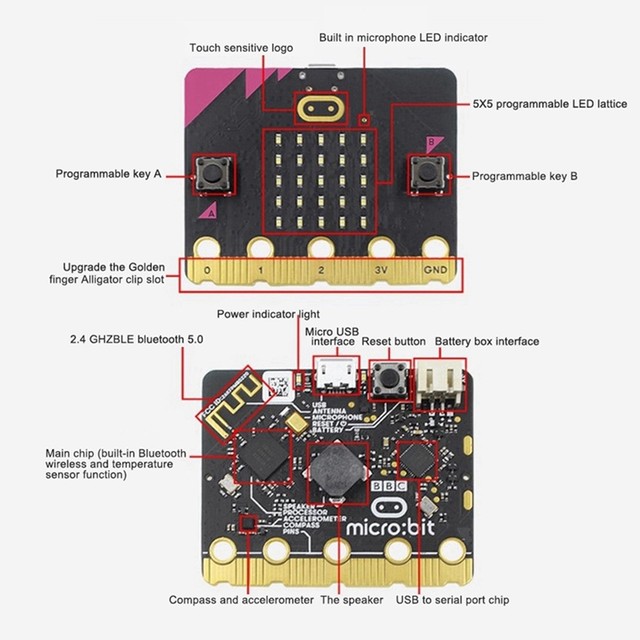

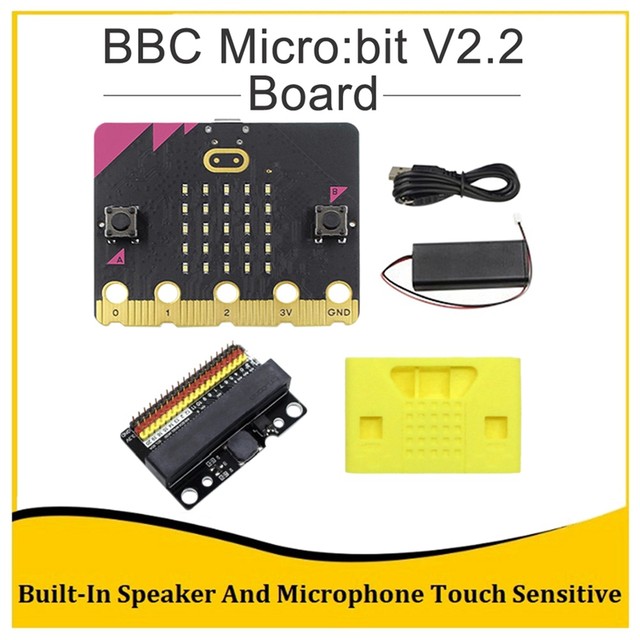

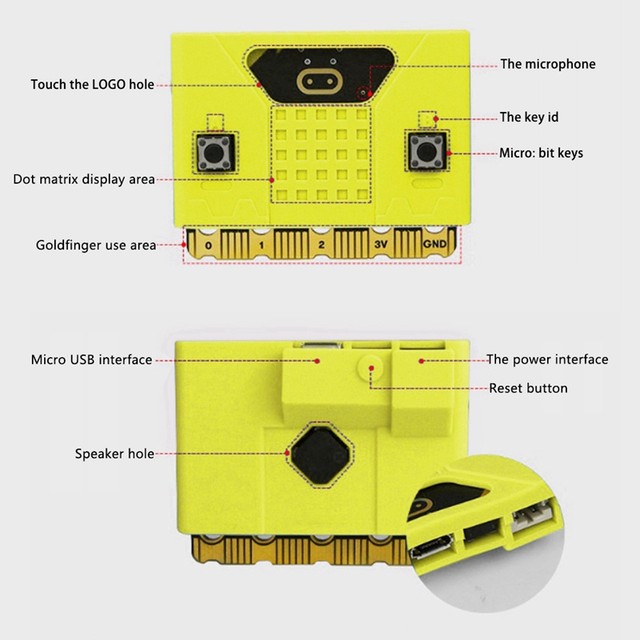

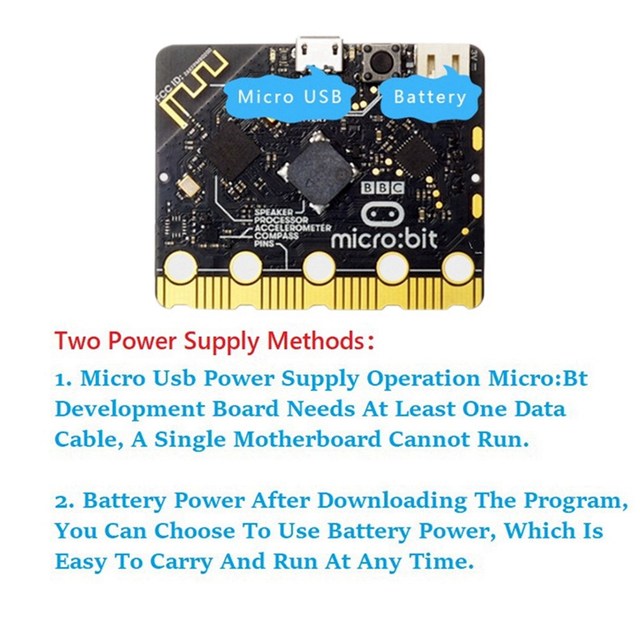

Onboard components: I/O signal port, Bluetooth, electronic compass, programmable buttons, LED dot matrix screen, accelerometer, microphone, touch-sensitive LOGO buzzer Connecting external devices: alligator clips, expansion boards Wireless connection: 2.4GHz wireless network 4.0BLE Bluetooth Power supply: Micro-usb 5v power supply, 3V power interface or battery box power supply Output current: 200 MA color:Black Material:PCB Package Contents: 1 x Micro:Bit V2.2 Development Board (Random Color, Cannot select specified color) 1 x Battery Box (Built-In 2 x AAA Batteries) 1 x Data Cable(Random Color, Cannot select specified color) 1 x IO BIT V1.0 Expansion Board 1 x Protective Case (Random Color, Cannot select specified color) Only the above package content, other products are not included. Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
