High resolution: HD LCD screen with 1440*1440 resolution.
The MIPI signal interface is used.
High-definition full-color screen, high contrast and wide color gamut bring superior high-definition picture quality experience.
Made of high-quality materials for a long service life.
Small size, easy to install.

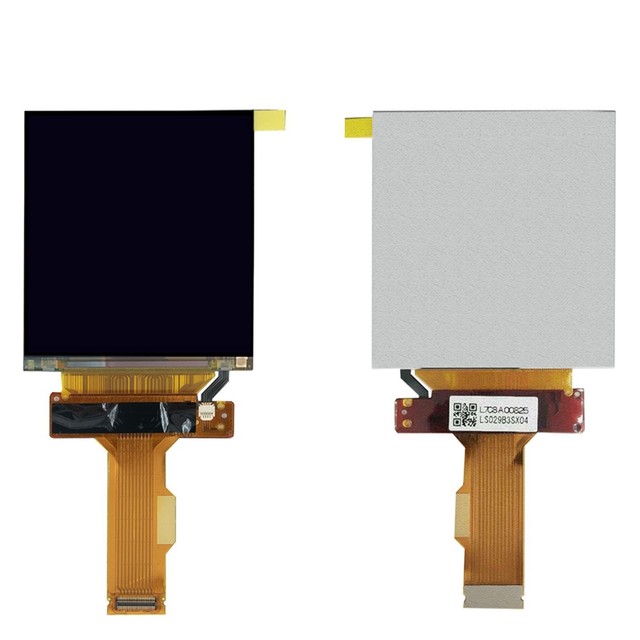

Name: Display HD screen
Model: LS029B3SX04
Number of pixels: 1440(RGB)x1440,705PPI
Display area: 51.84x51.84mm

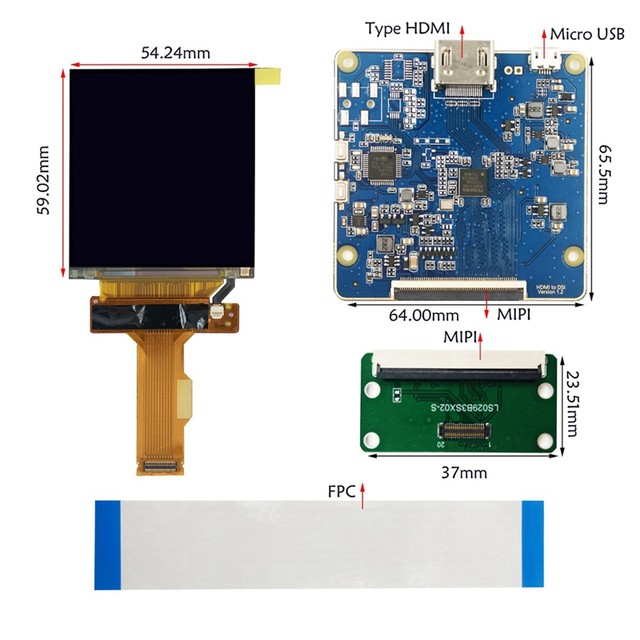

Appearance size: 54.24x59.02x1.51mm

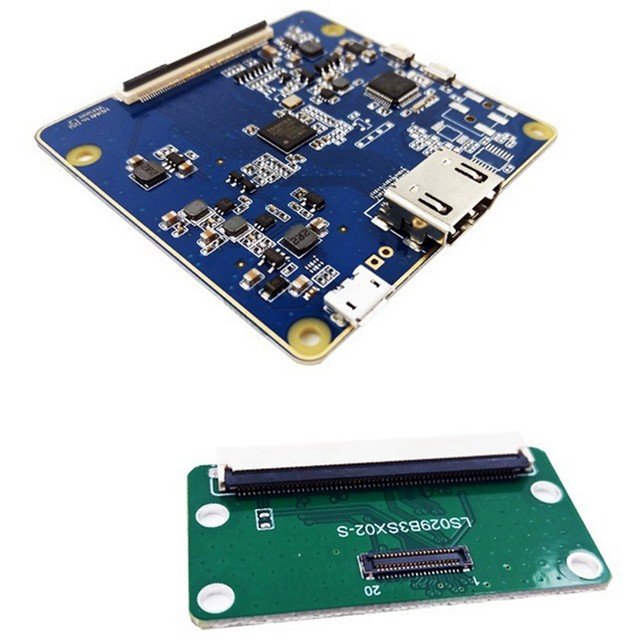

Driver board size: 64.00*65.5mm,
Adapter board size: 23.51*37.00mm
Viewing angle: 80/80/80/80
Recommended angle: full viewing angle
Display color: 16.7M
Response time: 10ms
Signal interface: MIPI, 40 pins
Brightness: 150cd/m
Contrast: 600:1(Typ.)(TM)
Driving voltage: 1.8V(Type.)(VCC/VGH/VGL)
Colour:black
Material:Glass

Package Contents:
1 x Display
1 x Driver Board
1 x Adapter Board
1 x Cable

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
