• 모델 번호: SC50-8
  • 유형: 러그
  • 브랜드 이름: DBWLI
  • 원산지: 중국
  • Model Number: SC25-6 SC25-8 SC25-10 SC25-12,SC50-6 SC50-10 SC50-12
  • Model Number1: SC35-6
  • Model Number2: SC35-8
  • Model Number3: SC35-10 SC35-12


옵션정보

[(496)5PCS SC25-6]


[(771)5PCS SC25-8]


[(350686)5PCS SC25-10]


[(100010417)5PCS SC25-12]


[(874686440)5PCS SC35-6]


[(350852)5PCS SC35-8]


[(10)5PCS SC35-10]


[(29)5PCS SC35-12]


[(94)5PCS SC50-6]


[(175)5PCS SC50-8]


[(193)5PCS SC50-10]


[(366)5PCS SC50-12]



Heavy Duty Marine Grade Copper Lugs with Hole M4/M5/M6/M8

These tinned copper cable lugs are perfect for wiring wire

Closed end design to keep environmental conditions (e.g. outdoor environment) away from the cable connection

Copper cable lugs are tinned for corrosion protection. Excellent for any outdoor installation and marine environment.

Wire can be crimped or soldered to copper lug

Package included:

5Pcs x Copper connector












Click The Link What You Want








Type

WireAWG

Mounting Hole Diameter:

SC1.5-5

 1.5mm216AWG

#10

SC2.5-4

 2.5mm214AWG

#8

SC2.5-5

 2.5mm214AWG

#10

SC2.5-6

 2.5mm214AWG

1/4"

SC4-4

 4mm212AWG

#8

SC4-5

4mm212AWG

#10

SC4-6

4mm212AWG

1/4"

SC6-5

 6mm210AWG

#10

SC6-6

 6mm210AWG

1/4

SC10-6

 10mm27AWG

1/4"

SC10-8

10mm27AWG

5/16"

SC16-6

 16mm25AWG

1/4"

SC16-8

16mm25AWG

5/16"

SC25-6

 25mm24AWG

1/4"

SC25-8

 25mm24AWG

5/16"

SC25-10

25mm24AWG

3/8"

SC35-6

35mm2 2AWG

1/4"

SC35-8

 35mm2 2AWG

5/16"

SC35-10

35mm2 2AWG

3/8"

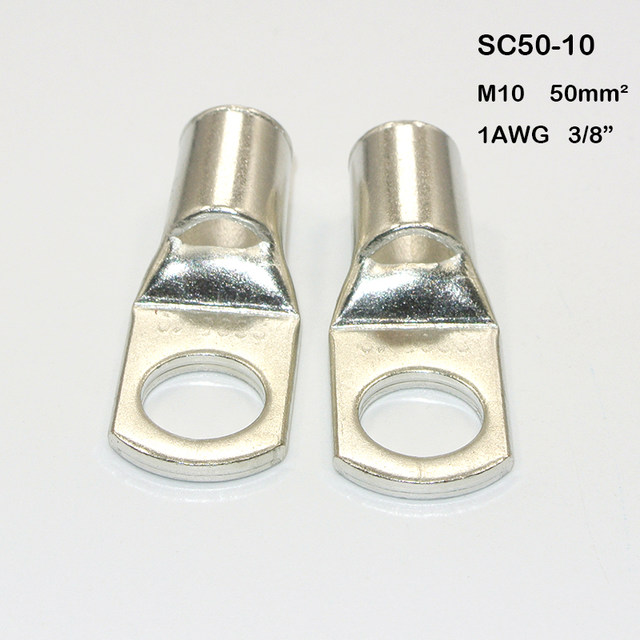

SC50-8

50mm21AWG

5/16"

SC50-10

 50mm21AWG

3/8"

SC50-12

 50mm21AWG

1/2"

SC70-10

 70mm22/0AWG

3/8"

SC70-12

70mm22/0AWG

1/2"

SC95-10

 95mm23/0AWG

3/8"

SC95-12

95mm23/0AWG

1/8"

SC120-12

 120mm24/0AWG

1/2"

SC120-14

120mm24/0AWG

9/16"

SC120-16

 120mm24/0AWG

5/8"







Full range of Copper Terminals

Manufactured from high quality tinned copper

Please note that the cable sizes are measured in mm⊃2;

These terminals are used in Cars, Motorcycles, Mopeds, Lorries, Caravans, Boats Quads, scooters and many other applications


If you require a different quantity please contact us for a price.


We
have a wide range of connectors, relays, relay holders, fuse holders,
grommets and many other automotive electrical components.
