Since each pixel uses an 8-bit grayscale signal, the product can display 16.7M colors, and its displayed color saturation also reaches 70% (NTSC).
In terms of backlight, the product adopts 8S2P WLED edge-type light source, excluding backlight driver.
It adopts MIPI (2 ch, 4 data lanes) signal interface, with a total of 50 pins, using terminal connection, and the drive voltage is 1.8/5.75/-5.75V (Typ.) (IOVCC/VSP/VSN).
Its typical vertical refresh rate Fv is 60Hz.
High light transmittance, long life under UV light, suitable for DIY light-curing 3d printers and VR, projectors. The PPI is very high, the pixel accuracy is 47.25um, and the projection pixel or printing accuracy is very high.

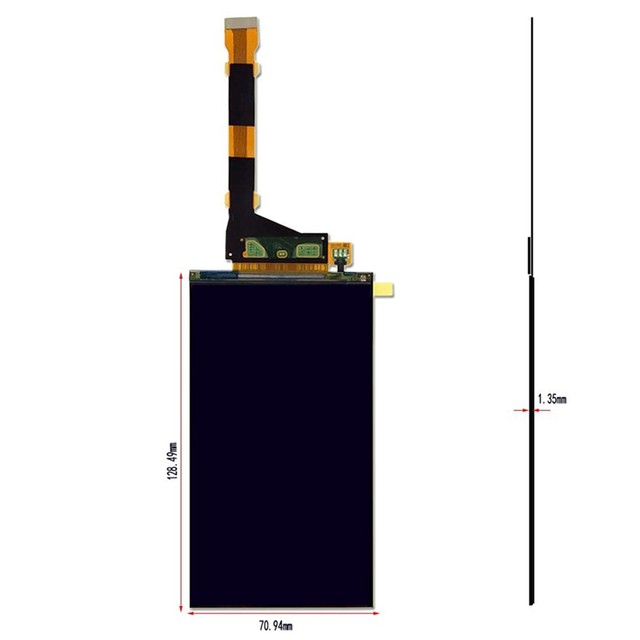

Size: 5.5 inches
Resolution: 1440*2560
Driver IC: R63419 is bound
PIN: 50pin
Refresh rate: 60Hz
Signal interface: MIPI
Input current: 23.5/15/14.0mA(Typ.)(IOICC/ISP/ISN)
Input Voltage: 1.8/5.75/-5.75V(Typ.)(IOVCC/VSP/VSN)
Type: LCD screen
color:Black
Material:Glass

Package Contents:
1 x Display Screen

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
