Crowtail Shield for Raspberry Pi Pico with 10 Crowtail Ports Plug and Play GPIO Expansion Board for Pico Support MicroPython & Arduino
Description

Raspberry Pi Pico is a new popular low-cost, high-performance microcontroller board. This Pico board can be well integrated with Crowtail sensors. Without jumpers and breadboards, you can quickly build prototypes and projects, and explore the endless possibilities of Pico.

Crowtail Shield for Pi Pico is a plug-and-play expansion board for Raspberry Pi Pico, integrating various Crowtail connectorsincluding 2*I2C, 3*Analog, 2*UART, 3*Digital ports, 1*BAT, SWD debug interface and SPI pin, 3.3v/5v selectable powers witch. The shield board is a stackable add-on board. You can directly use the Pre-Soldered Pico and plug it into the shield board, connect the Crowtail series sensors, and start developing your new project.

Learn more about the Crowtail series, click here. Get the Pico board together, click here.

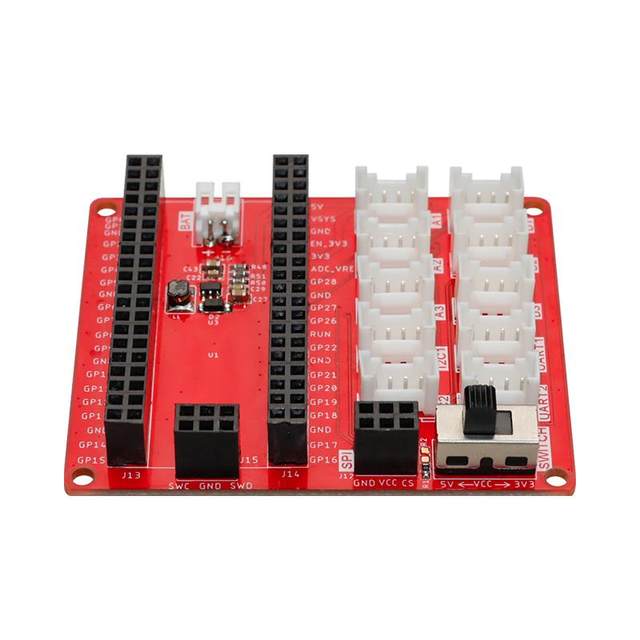

Hardware Overview

Feature

• Crowtail GPIO Expansion Board for Pico: Separate the pins and power supply of the board, providing 10 additional Crowtail ports

• Rich Peripherals for Crowtail: Provides 10 Crowtail ports, including 2 I2C, 2 UART, 3 digital and 3 analogs, 1 SPI port, 1 power switch, 1 BAT interface, and SWD debugging interface.

• No soldering required, plug and play: support direct connection to Crowtail sensors

• Platform support: MicroPython & Arduino

Specification

• Analog Port: Include 3 analogs ports, A1, A2, A3

• Digital Port: Include 3 digital ports, D1, D2, D3

• UART Port: Include 2 UART port

• I2C Port: Include 2 I2C ports

• SPI Port: Provide one SPI port

• BAT Port: Provide one BAT port

• Power Switch: Provide 5V/3.3V selectable power switch

• Operating Temperature: -25℃ to +85℃

• Operating voltage: Input power 3/5 V

• Dimension: 65mm * 56mm

• Weight: 26g

Package List

• 1x Crowtail Shield for Raspberry Pi Pico
