• 전압: 1000V

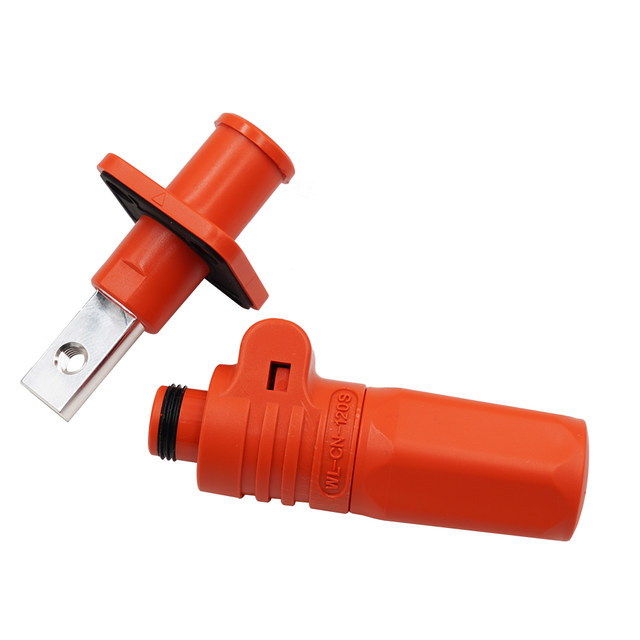

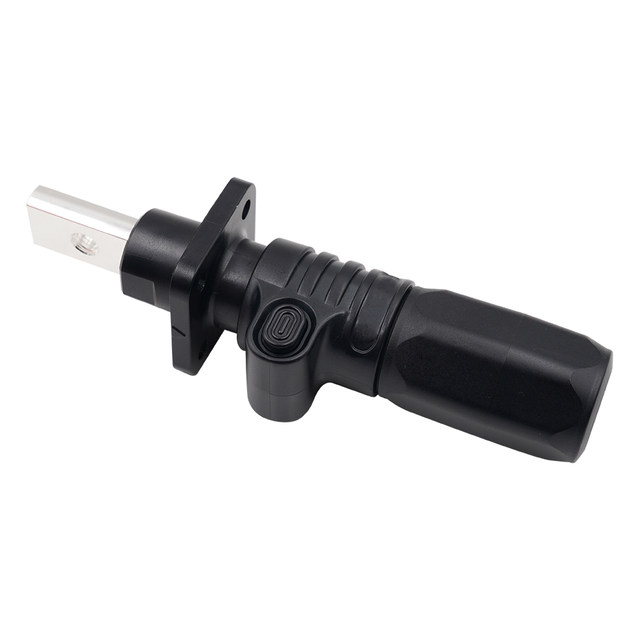

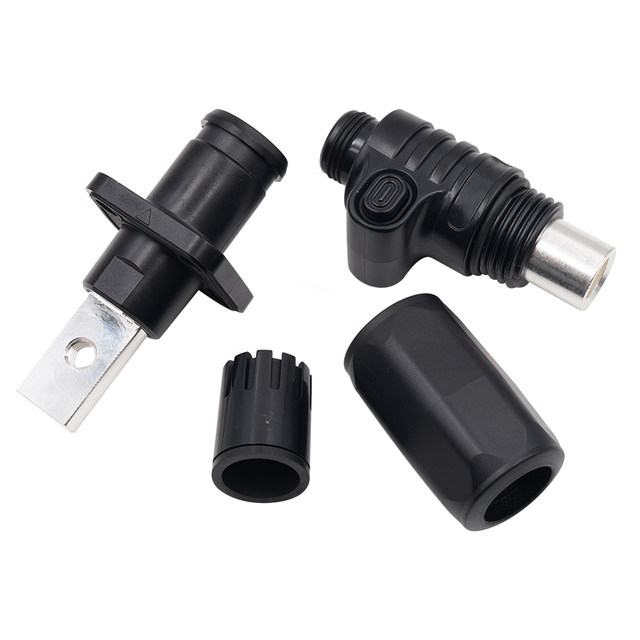

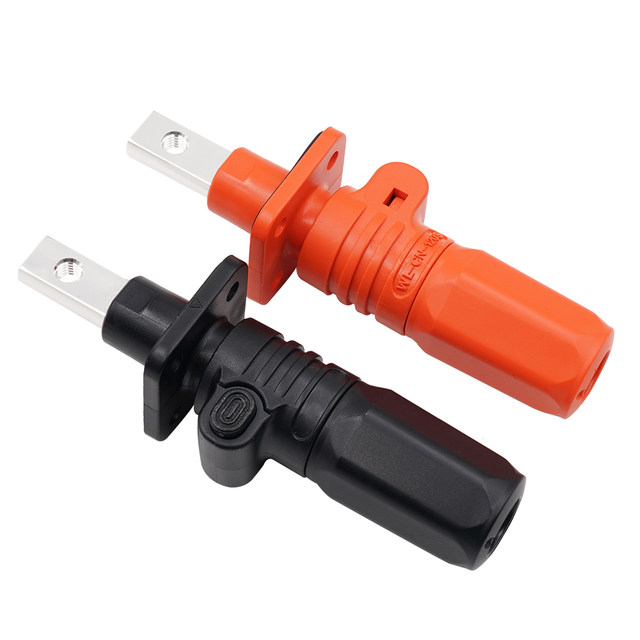

• 모델 번호: WL-CN-120S/WL-CN-200S
• 브랜드 이름: CNYAFA
• 근원: CN (정품)
• 증명서: 세륨,FCC,ROHS
• Rated Current: 120A/200A
• Rated Voltage: 1000V
• Material: PA66/Red Copper(Silver Plated)
• Contact Resistance: ≤0.5mΩ
• Temperature Rise: 45K Max
• Temperature Range: -40℃ to +125℃
• Degree Of Protection: IP67
• Overvoltage Rating: II
• Flammability Rating: UL94-V0
• Plug In/Pull Out Force: ≤35N/≥8.5N
• Wiring Mode: Crimp Connection
• Cable: 120A(16-25MM2)200A(35-50MM2)
• Colour: Black/Orange
