• 맞춤 가능 유무: 그렇습니다
  • 컨덕터 크기: Other
  • 콘택트 개수: 1 - 10
  • 모델 번호: UK 5-TW
  • 유형: 나사
  • 브랜드 이름: WONKEDQ
  • 근원: CN (정품)
  • Usage: Electrical Wiring
  • Application: Distribution panel
  • Cross section solid cable: 0.2-4mm2
  • Cross section soft cable: 0.2-4mm2
  • Current: 32A
  • Voltage: 500V
  • Mounting type: Din Rail
  • Size: 50.5/46.2/6.2


CE/RoHS/CQC/ISO 9001

ACCESSORIES ( Click the pictures to the links)

END COVER
D-UK 5-TW

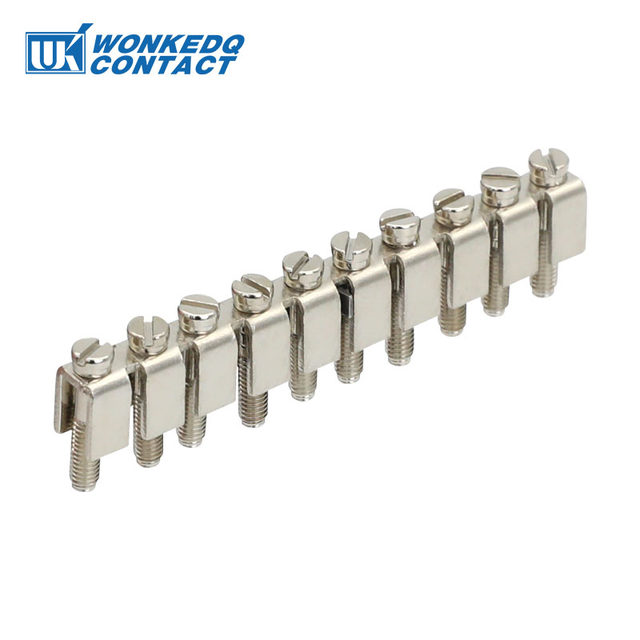

JUMPERS BRIDGE
FBI 10-6

MARKER STRIPS
ZB6

END STOP
E-UK

MARKER CARRIER
B1

MARKER CLIPS
KLM-A

DIN RAIL
NS35-S

INSERTION BRIDGE
EB 10-6

Type No.

Details

Accessories

UK 5-TW

500V/32*A
0.2-4mm2;/0.2-4mm2;
L50.5/H46.2/W6.2 mm

End cover:
D-UK 5-TW

Fixed bridge:
FBI 10-6

Insertion bridge:
EB 10-6

Marker strip:
ZB 6


Technical Parameters

Model Number

UK 5 TW, Twin Modular Terminal Block

Color

Grey, Blue, other color can be customized

Length/Height/Wide (mm)

50.5/46.2/6.2

Connection method

Screw connection

Material

Nylon PA66

Rated Voltage/Current

500V/32A

Cross section, solid/soft Cable

0.2-4 mm2; / 0.2-4 mm2;

Conductor Size

24-12 AWG

Mounting Type

NS 35/7.5

Standard

IEC 60947-7-1

LOGO

Customized logo are supported

Packing Detail

10.43g/pc, 50PCS/BOX,1500PCS/CTN

Certification

CE/RoHS/CQC/ISO 9001
