옵션정보
[(200006155)Oscilloscope kits]
[(201530806)Oscilloscope]
상품정보
- 브랜드 이름: MAXRIENY
- 원산지: 중국
- 힌트 관련 화학: 없음
- DIY 용품: 전기
- 디지털 채널: 1
- 모델 번호: Digital Oscilloscope
- 배터리 착탈식: 네
- 증명서: 세륨
- 증명서: FCC
- 증명서: ROHS
- 실시간 샘플링 속도: 48MSa/s
- 디스플레이 크기: 2.9 인치 및 밑에
- 밴드 너비: 미만 60 MHz의
- Handheld Oscilloscope: Yes.
- Professional digital multim: Yes.
- Maximum display: 9999 counts
- True RMS: Yes.
- Bandwidth: 10MHz
- Real-time sample rate: 48MSa/s
- Voltage test: Yes.
- Current test: Yes.
- Temperature test: Yes.
- DC Voltage test: Yes.
- AC Voltage test: Yes.
- DC/AC Current test: Yes.
- Capacitance test: 100mF
- Resistance test: Yes.
- Diode: Yes.
- Temperature test: -20-1000C
- Frequency test: 1000KHz
- Continuity: Yes.
1 x Oscilloscope
1 x Test Leads
1 x Oscilloscope probe
1 x Thermocouple
1 x Carrying Case
1 x Screwdriver
1 x User Manual

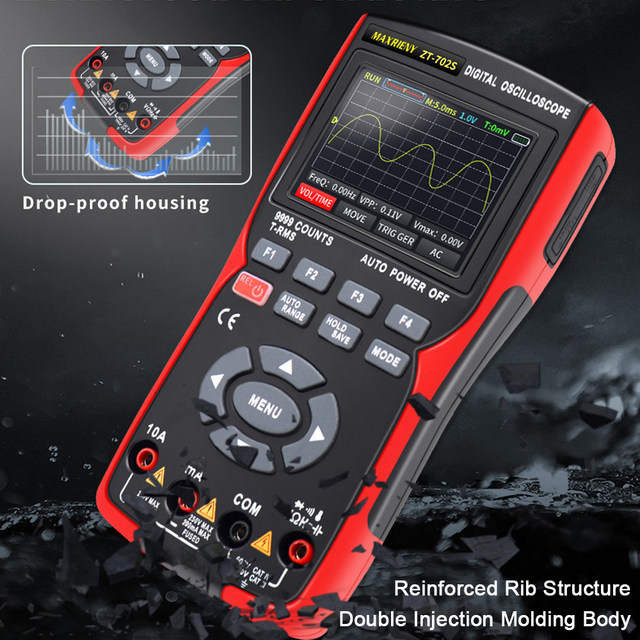

ZT702S is a fully functional, practical, and cost-effective handheld universal wave indicator
【 Oscilloscope Mode 】: 2.8 "IPS color LCD oscilloscope, 10MHZ bandwidth, 48MSa/s real-time sampling rate, automatic calibration function, memory function, etc.
[Multimeter mode]: 9999 counts, MAX/Min value, capacitance, current, temperature, diode, voltage, resistance, frequency, continuity testing.
Data storage and transmission: Test data can be saved and transmitted.
【 Color LCD Display 】: Color LCD displays greatly enhance the reading experience, making it easy to read even in sunny or poorly lit conditions.
[Rechargeable]: Equipped with an 18650 rechargeable battery and charging cable, you will never worry about power issues.

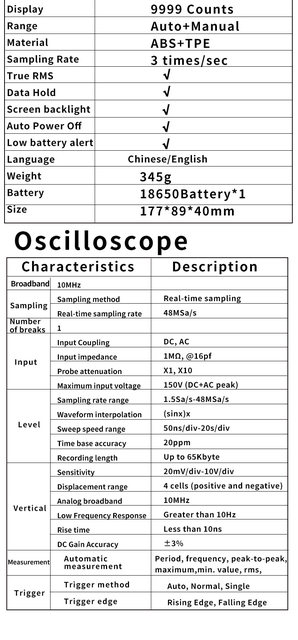

Specifications:
Display: 9999 counts
Screen Size: 2.8 inch
Bandwith: 10MHz
Real-time smaple rate: 48MSa/s
Input Impedance: 1MΩ,@16pf
Maximum input voltage: 400V (DC+AC peak)
Horizontal SEC range: 50ns/div -20s/div
Vertical sensitivity: 20mV/div -10V/div
DC voltage:
9.999mV/99.99mV/999.9mV/9.999V/99.99V/999.9V 0.001mV/0.01mV/0.1mV/0.001V/0.01V/0.1 V ±(0.5%+3)
AC voltage:
9.999mV/99.99mV/999.9mV/9.999V/99.99V/750.0V 0.001mV/0.01mV/0.1mV/0.001V/0.01V/0.1 V ±(1.0%+3)
DC current:
9999μA/99.99mA 1μA/0.01mA ±(0.8%+3); 999.9mA/9.999A 0.1mA/0.001A ±(1.0%+3)
AC current:
9999μA/99.99mA 1μA/0.01mA ±(1.0%+3); 999.9mA/9.999A 0.1mA/0.001A ±(1.2%+3)
Resistance:
99.99Ω0.01Ω ±(1.0%+3); 999.9Ω/9.999kΩ/99.99KΩ/999.9KΩ 0.1Ω/0.001KΩ/0.01KΩ/0.1KΩ ±(0.5%+3);
9.999MΩ 0.001MΩ±(1.5%+3); 99.99MΩ 0.01MΩ ±(3.0%+5)
Capacitance: 9.999nF 0.001nF ±(5.0%+20);
99.99nF/999.9nF/9.999µF/99.99µF/999.9µF 0.01nF/0.1nF/0.001µF/0.01µF/0.1µF ±(2.0%+5);
9.999mF 0.001mF ±(5.0%+5)
Frequency:
99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/5.000MHz 0.01Hz/0.1Hz/0.001kHz/0.01kHz/0.1kHz/0.001MHz ±(0.1%+2) Temperature: -20℃-1000℃/-4℉-1832℉ ±(2.5%+5)
Diode: Yes
Continuity: Yes
Power: 18650 battery
Package Includes:
1 x Oscilloscope
1 x Test Leads
1 x Oscilloscope probe
1 x Thermocouple
1 x Carrying Case
1 x Screwdriver
1 x User Manual
