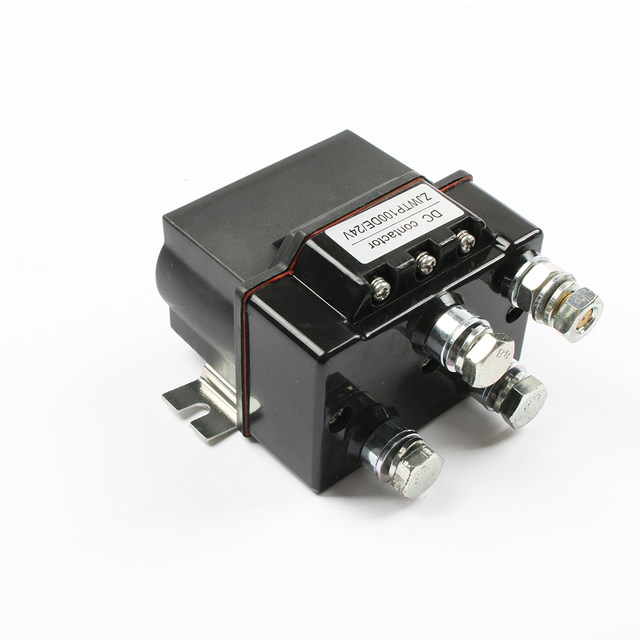

K400/2Z

Use: K400 products are mainly used in the automotive winch or electric winch control

   Reversing of the motor.

  FEATURES

400A Switching capability(400Alittle switching capability)

 with two changeover contacts (2PDT)

 Coil power consumption of 16W (Power consumption of 16W)



configurational mounting diagram

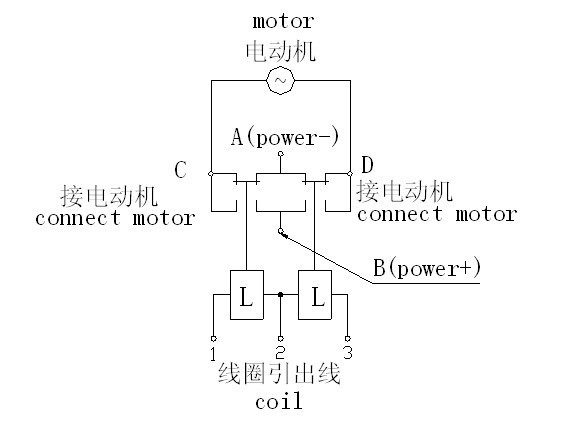

Circuit diagram

Attention:

This style contactor coil voltage have 12v, 24v, 48v, 60v ,please buy before leave a message to me about the coil voltage , thanks
