- 전력 공급: DC
- 모델 번호: 12V 24V 36V
- 차원: 79.3mmx42.25x 24.38mm
- 작동 온도: -10 to 65°C
- 정확도 등급: High precision
- 대형 활자: 디지털 전용
- DIY 용품: ELECTRICAL
- 브랜드 이름: diymore
- 근원: CN (정품)
- Display: 0.28\
- Working voltage: DC 8~24V
- Measuring voltage: DC 0.000~100.0V
- Measuring current: DC 0.000~9.999A
- Measuring power: DC 0.000W~1000W
- Refresh rate: ≥300ms/time
- Measurement accuracy: 1% (±1 bit)
- Working current: <30mA
- Working temperature: -10 to 65 ° C
- Operating humidity: 10 to 80% (non-condensing)
- Product size: 79.3mmx42.25x 24.38mm
- Mounting hole: 72.0mm x 39.0mm

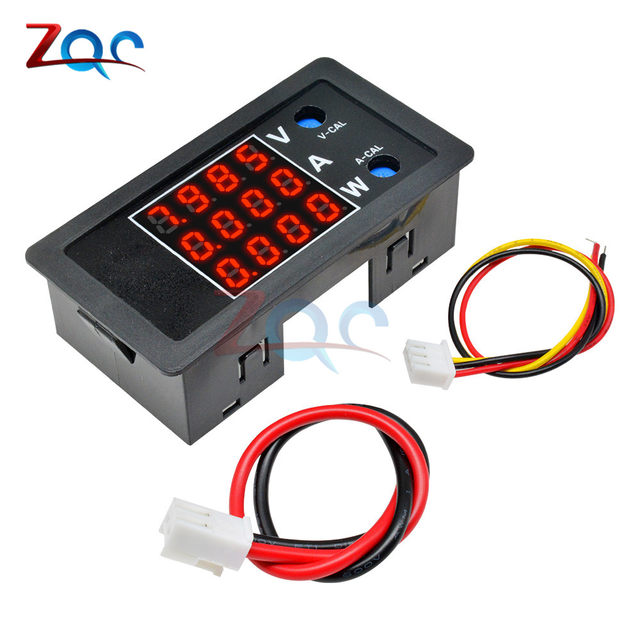

Technical Parameters
Display: 0.28" LED number
Working voltage: DC 8~24V
Measuring voltage: DC 0.000~100.0V
Measuring current: DC 0.000~9.999A
Measuring power: DC 0.000W~1000W
Refresh rate: ≥300ms/time
Measurement accuracy: 1% (±1 bit)
Working current: <30mA
Working temperature: -10 to 65 ° C
Operating humidity: 10 to 80% (non-condensing)
Product size: 79.3mmx42.25x 24.38mm
Mounting hole: 72.0mm x 39.0mm
Product weight: 38g
