• 품목 유형: 스위치 패널
  • 근원: CN (정품)


옵션정보

[(175)green]



Features:

* Flexible Customize Panel: Customize unique personal button switch panel with 24 universal switch stickers; Operating at 12 Volts, max power rating of 960 Watts.

* Safety Protection Design: Advanced thermal protection and overload protection design will help the loads work safely; A temperature protection switch automatically disconnects the relays if the internal temperature crosses 100°C.

* High Quality Materials: High temperature resistant, fuse relay box shell made of Eco-friendly & flame retardant durable ABS plastic; Operating temperature: you can even use it at 200°(max).Totally Environment Friendly.

* Easy and Quick Installation: Clean and neat design, no frustrating wiring. All wires are labeled and in different colors, just need an hour, with plug and play wiring and easy-to-install components; It can solve the problem of the wiring for car lights modification and installation.

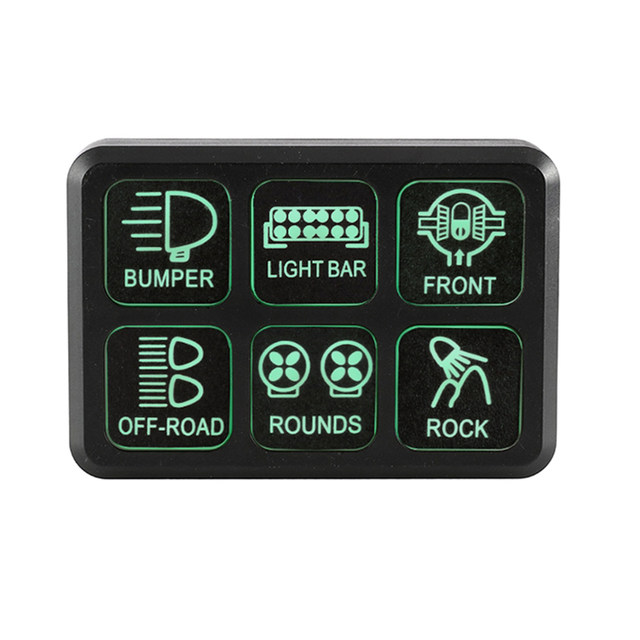

* Package Content: All required mounting hardware and wiring instruction; Included 6 Gang Led Illuminated Button Switch Panel, Fuse Relay Box, Wiring Harness, Mounting Accessories, Wiring Instruction.



Specification:

Color: Black

Material: ABS Plastic

Working Voltage: 12V / DC

Max Power: 960W

Switches: 6 Gang Buttons

Input wire material: 12 AWG 10-15cm MIN red

Output wire material: 16 AWG 10-15cm red

Product use: Can be used as headlight switch, fog light switch, line of sight light switch, car refrigerator switch, car vacuum cleaner switch, etc.

Installation scope: suitable for installation and use of high-end large-scale transportation tools such as ships, yachts, RVs, buses, etc.



Packing included:

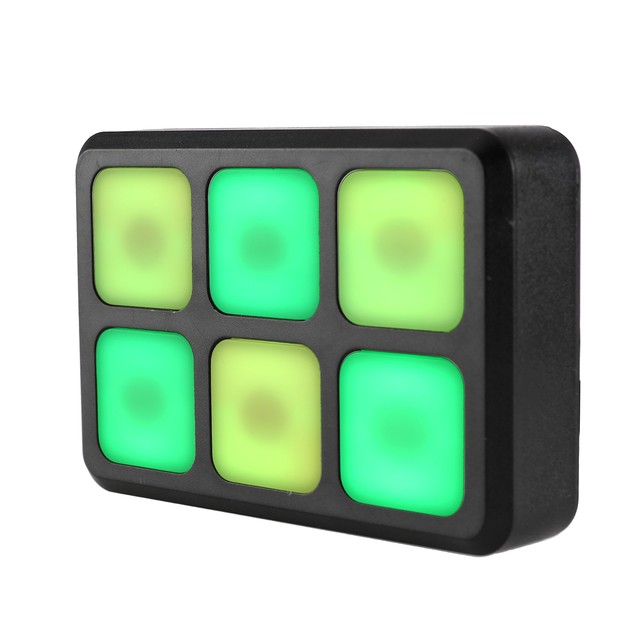

1 * 6 Gang Switch Panel

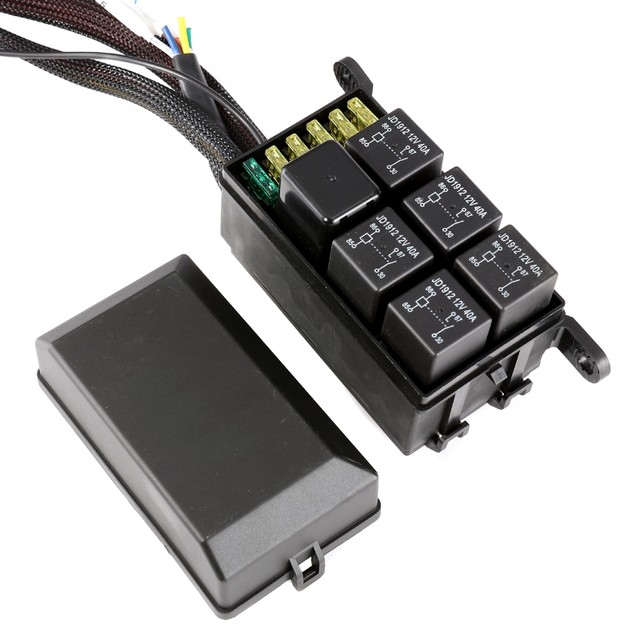

1 * Fuse Relay Box

1 * Plug and Play Wiring Harness

1 * Panel Mounting Bracket

1 * Labels (24 Pcs)

5 * 20A fuse

1 * 30A fuse

6 * 40A relay

1 * Wiring Instruction

Mounting Accessories



Note:

1. Please allow 1-3cm (0.4-1.18") difference due to manual measurement and slight color variation for different display setting.

2. Due to the light and screen difference, the item`s color may be slightly different from the pictures. Please understand.
