Specification:
Use LCD to display the satellite signal intensity.
Built-in signal alert buzzer.
With LCD backlight/buzzer and attenuation control function.
DC pass to LNB.
ATT increasing key. If the incoming signal is too strong, (the thermometer-scales shows max and the signal strength value shows 99),
it can easily be attenuated by enabling this "attenuation" funtion, it reduces the incoming signal to a lower level. There are four step attenuation totally.

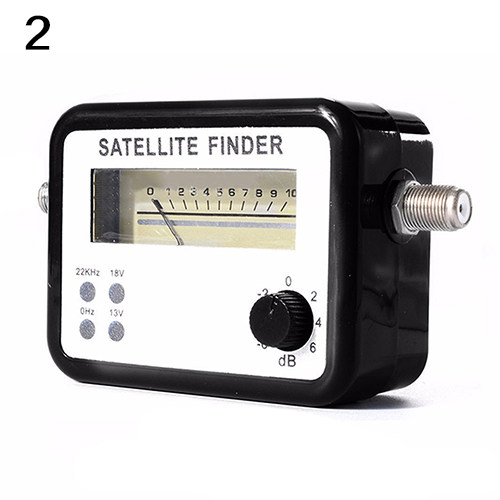

Type: Digital Satellite Finder
Frequency Range: 950-2150MHz
Supply Voltage: 13-18V DC
Input Level Range: -40dBm - -10dBm
Operating Temperature: 0¡É - 40¡É
Impedance: 75¥Ø
Size: 13cm x 6.5cm x 2.7cm/5.12" x 2.56" x 1.06" (Approx.)
Notes:
Due to the light and screen setting difference, the item`s color may be slightly different from the pictures.
Please allow slight dimension difference due to different manual measurement.
Package Includes:
1 x Digital Satellite Finder
1 x User`s Manual
