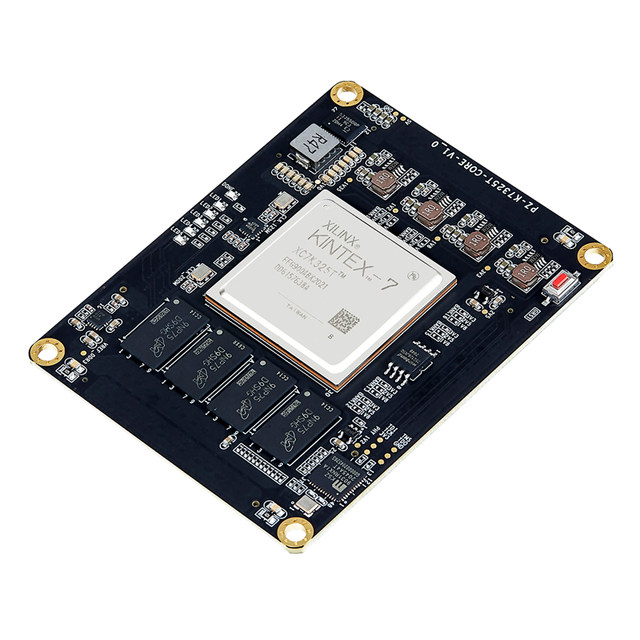

• 모델 번호: PuZhi PZ-K7325T-SOM
• 데모 보드 유형: FPGA
• 브랜드 이름: PZ
• 근원: CN (정품)
• FPGA Chip: XC7K325T-2FFG900I
• Logic Cells: 326080
• Slices: 50950
• BLOCK ROM: 16020
• DSP Slices: 840
• DDR3: 2GB/32bit bit width
• Start-up Mode: JTAG/QSPl, default QSPlenabled
• Gigabit Ethernet: 1(industrial grade chip selected if availability)
• User LED: 5
• Reset Key: 1
• GTX: 16 pairs of TX/RX
• IO: 288 l0 ports, all level 1.8/2.5/3.3V adjustable
• Voltage/Current: 5V/3A
• Technology: Immersion Gold Process, 120P Connectors X4

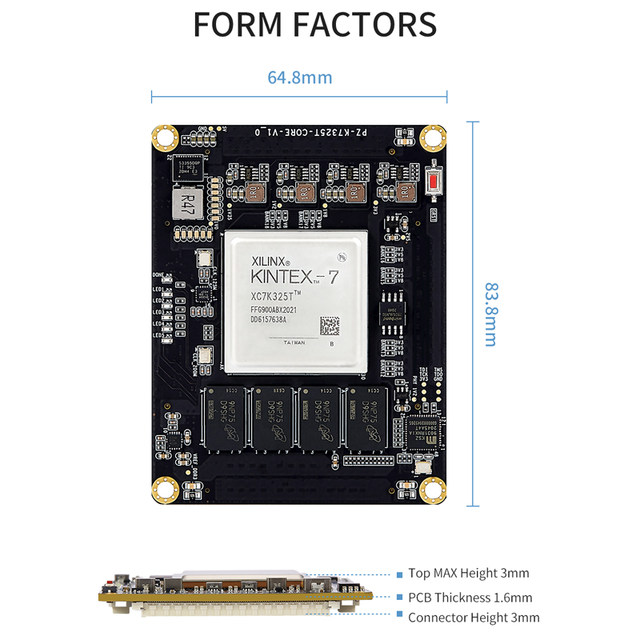

• Connector Height: 3mm
