색상: 파란

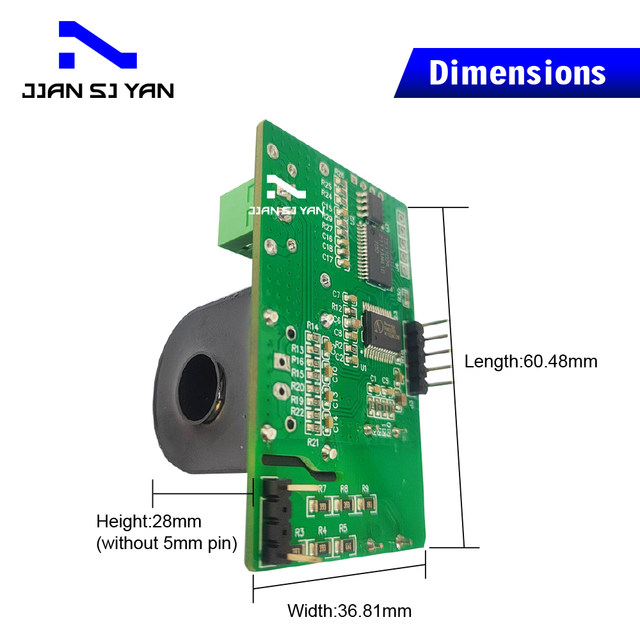

차원: 60.4836.8128mm
작동 온도: Minus 20 degrees Celsius Positive seventy degrees
정확도 등급: ±1.0
측정 전압 범위: 0~264V
측정 현재 범위: 20mA~50A

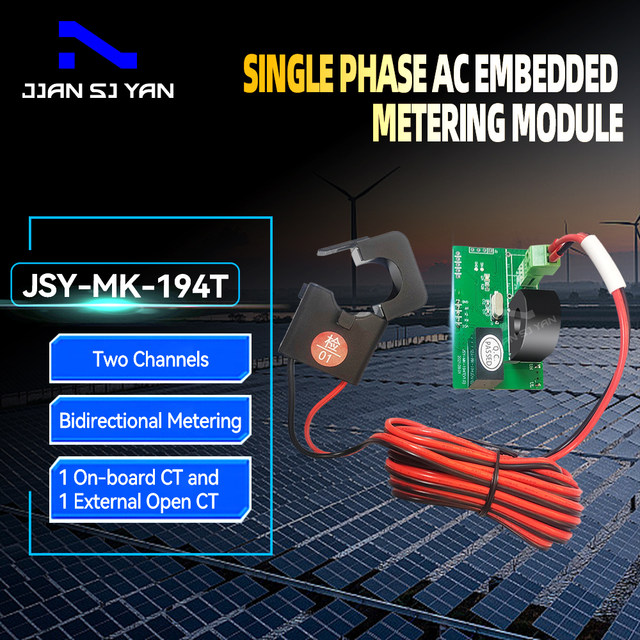

모델 번호: JSY-MK-194T
DIY 용품: ELECTRICAL
브랜드 이름: NoEnName_Null
근원: CN (정품)
Product Features: Collect single-phase two-channel AC parameters
measurement: Adopt special measuring chip and effective value measurement method
communication interface: 1-way TTL
Communication Protocol: Modbus-RTU
High isolation voltage: Withstand voltage up to DC3000V
Measurement accuracy: Voltage, current, power, electric quantity: less than ±1.0%;
power supply: DC single power supply 5V, power consumption 10mA
Relative humidity: 5 ~ 95%, no condensation (at 40℃)
altitude: 0~3000m
way to install: PCB welding
