- 후면 카메라: YES
- 배터리 수명: Connect Rain Sensor
- 오리지널 패키지: YES
- 터치스크린: no
- 화면 비율: NONE
- 필요한 메모리카드 읽기 속도: 클래스 10
- 시야각: 170°
- 카메라 해상도: 1920x1080
- 비디오 코드: H.264
- 비디오 형식: MOV,MP4
- 특징: G-sensor,디스플레이 회전,실시간 감시,Wifi 기능
- 최대 외부 메모리: 128G
- 렌즈 개수: 2
- 이미징 센서: 소니 IMX323
- 픽셀: 500Mega
- OSD 언어: 아르메니아,벨라루스어,중국어 (간체),중국어 (번체),덴마크어,english,French,독일,히브리어,ITALIAN,Japanese,Korean,라틴,포르투갈어,러시아어,Spanish,태국
- GPS 로거: NONE
- 공용영역: WI-FI,마이크로 SD/TF
- 배터리: 아무도
- 조립 모드: 숨겨진 유형
- 칩셋 제조자: Novatek
- 초당 프레임: 30
- 브랜드 이름: jabriel
- 근원: CN (정품)
- 품목 유형: 자동차 블랙박스
- CPU: Novatek 96672
- Special Features1: Wifi
- Special Features2: HD 1080P
- Special Features3: New Plug and Play
- Work Voltage: 12V
- Display: No
- Suitable for models1: audi a1
- Suitable for models2: audi a3
- Suitable for models3: audi a4
- Suitable for models4: audi a5
- Suitable for models5: audi a6
- Suitable for models6: audi a7
- Suitable for models7: audi a8
- Suitable for models8: audi q2
- Suitable for models9: audi q3
- Suitable for models10: audi q5
- Suitable for models11: audi q7
- Suitable for models12: audi q8
- Suitable for models13: audi s1 audi s2 audi s3 audi s4
- Suitable for models14: audi s5 audi s6 audi s7 audi s8
- Suitable for models15: audi rs3 audi rs4 audi rs5
- Suitable for models16: audi rs6 audi rs7
- Suitable for models17: audi tt
- Suitable for models18: audi 8v audi 8p
- Suitable for models19: audi b4 audi b5 audi b6
- Suitable for models20: audi b7 audi b8 audi b9
- Suitable for models21: audi c5 audi c6 audi c7
옵션정보
[(193)AD01 Black One Rain]
[(29)AD01 Black Two Rain]
[(691)AD01 Gray One Rain]
[(10)AD01 Gray Two Rain]
[(350852)AD02 Black One Rain]
[(366)AD02 Black Two Rain]
[(175)AD02 Gray One Rain]
[(173)AD02 Gray Two Rain]
[(496)AD03 Black One Rain]
[(350686)AD03 Black Two Rain]
[(1052)AD03 Gray One Rain]
[(350850)AD03 Gray Two Rain]

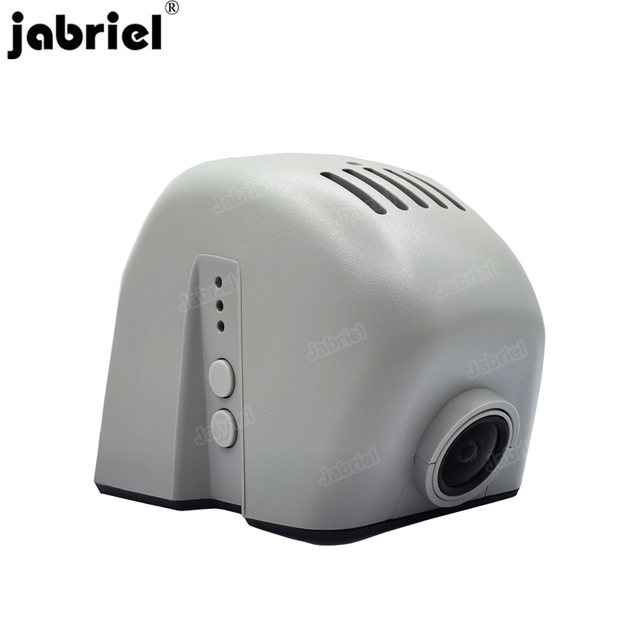

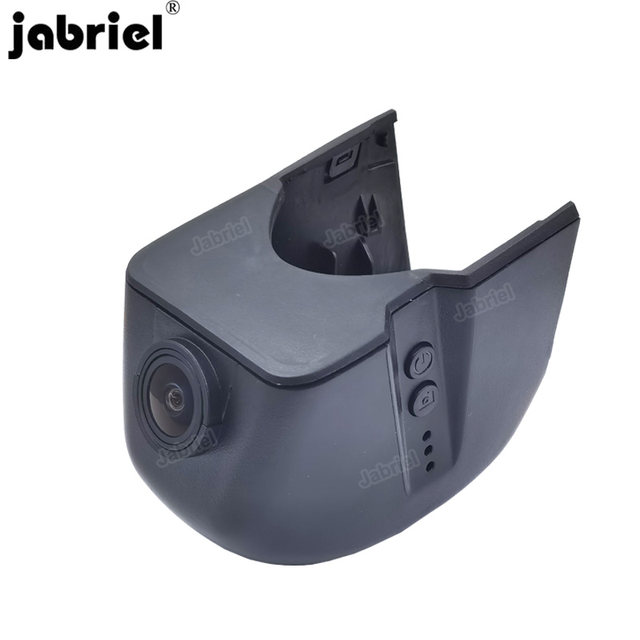

Jabriel New Plug and Play Auto Hidden Wifi Car DVR Dash Cam HD 1080P Dashcam Driving Recorder EDR Dual Lens Rear View Camera Car Digital Video Recorder Camera for audi a1, audi a3, audi a4, audi a5, audi a6, audi a7, audi a8, audi q2, audi q3, audi q5, audi q7, audi q8, audi rs3, audi rs4, audi rs5, audi rs6, audi rs7, audi tt, audi s3, audi s4, audi s5, audi s6, audi s7, audi s8,
audi a4 b4 b5 b6 b7 b8 b9, audi a6 c5 c6 c7, audi a3 8v 8p.
Package Include:
1 x Manual
1 x Car DVR
1 x Power Cord
Please Contact customer service to send photos when you buy it!
1: Because this product is dedicated, In order to avoid installation or other problems, please tell us which year and which model of your car, and be sure to take photos for the rear view mirror base and send it to us.
2:The Rain Cable can only be used for 50% of specific car models , if you need the Rain Cable , please send us your rain sensor interface photo , then we can check it.
New Plug and Play HD 1080P Hidden WIFI Car DVR Dash Camera for Audi
New Plug and Play Car Dvr Dash Cam Easy to install
Connect to the rain sensor or reading light of the Original car
The New Plug and Paly Car Dvr Dash Cam can be pluged to the rain sensor or reading light of the original car to take electricity.It is easy to install. Inserted without damage, no wiring is required, and it maintains the original car style after installation.
128G·Smart Storage
Big, Regarding the overall improvement of storage,
Support 8-128 GB Keep driving records longer.
Safety explosion protection
High and low temperature resistance,no built-in battery design, more
safer Automotive fuse power, built-in low voltage monitoring,
automatic shutdown, non-destructive battery.
Six Glass HD 1080P Lens --- Sony IMX323
6-layer full glass lens, F2.0 large aperture
Adopt 6-layer full-glass 1080P high-definition camera,
F2.0 large apertureis larger than F2.4, and better quality
in low light environment
Built-in WDR wide dynamic technology
WDR technology uses DSP circuit to expose the bright and dark parts with
the appropriate shutter speed, and the two images are processed by DSP,
so that the over-bright and over-dark parts can be seen clearly.
Gravity Sensing
When a violent collision occurs, the emergency backup recording function is
automatically recognized and activated, and the important evidence locking protection
is stored in the memory card to prevent loss of coverage.
Link WIFI Control
Please download Timacam app from Apple Store or Google Play Store.
The Wifi name is CARDV**** Or Y06-****
The password is 88888888 or 12345678
Real Video Display
The image is compressed and actually very clear
Cycle Recording without leaking seconds Video segmentation
recording, when the video is full, the recorder will automatically
delete the previously recorded video clips and record them in
a loop, so that you don`t have to worry about frequent card changes.
Cable Connection
New Plug and Play Power Cable:
Connect to the rain sensor or reading light of the original car.
Standard ACC Power Cable:
Reference Installation Guide
1. Before installation
First test: the red and yellow wire harnesses of the recorder are connected to the positive electrode of the battery, the black wire is connected to the negative electrode of the battery, the indicator light of the recorder lights up, and the test is completed!
2. Installation
The red wire is connected to ACC, the yellow wire is connected to constant electricity, the black ground is connected, You need an electric pen to measure ACC and constant electricity.
(1)Turn on the engine---The indicator light of the electric pen is on, Turn off the engine---The indicator light of the electric pen is off. it is ACC.
(2) Turn on the engine---The indicator light of the electric pen is on, Turn off the engine---The indicator light of the electric pen is on. it is constant electricity.
3. After installation
The memory card needs to be formatted before use, and it must be turned off before removing the card each time (the indicator is off when the indicator is off).
Jabriel Special Car DVR Dash Cam Configuration Table
If you need the item with other configuration, please contact us freely.
We will share the product links with you.
