• 프로세서 브랜드: 록칩(Rockchip)
• 메모리 용량: 4GB

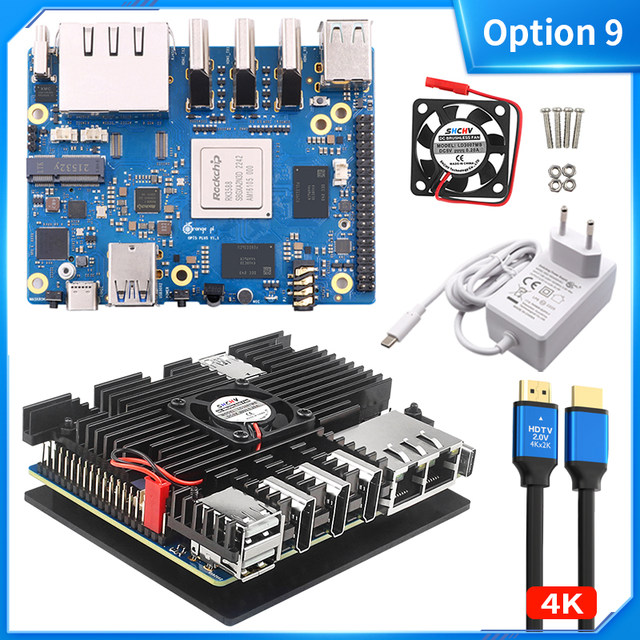

• 모델 번호: Orange Pi 5 Plus 16GB
• 데모 보드 유형: 팔
• 브랜드 이름: SHCHV
• 원산지: 중국
• SoC: Rockchip RK3588 (8nm LP process)
• CPU: 8-core 64-bit processor,4 x Cortex-A76(2.4GHz), 4 x Cortex-A55(1.8GHz) and separate NEON co-processors
• GPU: Arm Mali-G610,Built-in 3D GPU,Compatible with OpenGL ES1.1/2.0/3.2, OpenCL 2.2 and Vulkan 1.2
• NPU: Embedded NPU supports INT4/INT8/INT16/FP16 mixed operation, with up to 6Tops computing power
• PMU: RK806-1
• RAM: 4GB (LPDDR4/4x)
• Memory: QSPI Nor FLASH, 16MB/32MB, MicroSD card slot: up to 128GB, eMMC socket: 16GB/32GB/64GB/128GB/256GB eMMC module can be attached,M.2 2280 slot for NVMe SSDs (PCIe 3.0 x4) up to 2,000 MB/s
• USB: 2 x USB3.0;2 x USB2.0;1 x Type-C
• Video: 2x HDMI-compatible 2.1 out up to 8k@60FPS; 1x Type-C with DP TX 1.4A, up to 8K@30FPS; 1x HDMI-compatible in with up to 4K@60FPS; 1 x MIPI DSI TX 4 Lane, up to 4K @60Hz
• TP interface: 1x 6Pin FPC socket
• Camera: 1x MIPI CSI 4 Lane
• Audio: CODEC:ES8388: 1xAudio 3.5mm jack with mic; 1xMIC In; 1xHDMI 2.1 eARC; 1xSPK;
• Ethernet: 2xPCIe 2.5G LAN (RTL8125BG)
• Expansion Port: 40Pin dual row pins with the following multiplexing functions: UART, I2C, SPI, CAN, I2S, PDM, AUDDSM, SDIO, PWM, GPIO
• PCIe M.2 M-KEY Socket: M.2 connector M key (bottom) for NVMe with PCIe 3.0 x4 lanes 2280 SSD
• PCIe M.2 E-KEY Socket: M.2 connector E key (top) for connectivity with PCIe 2.0 x1/PCM/UART/USB2.0,2230 Wi-Fi6 /BT supported
• Button: 1xMaskROM key; 1xRecovery; 1xon/off key
• Power Source: Support Type-C power supply, 5V@4A
• IR receiver: 1x IR receiver tube
• LED: RGB LED side light
• FAN: 5V FAN
• RTC: 2Pin: RTC backup battery
• Debugging: 3Pin debug serial port (UART)
• Supported OS: Orangepi OS (Droid), Orangepi OS (Arch), Ubuntu22.04, Debian11, Android12
