옵션정보

[(365458)A Gauge with sensor]

[(350850)B Gauge with sensor]

[(29)Only Sensor]

[(10)Only C Gauge]

[(200003699)Only B Gauge]

[(200004889)C Gauge with sensor]

[(350852)Gauge with sensor]

[(200004891)Only A Gauge]

[(350853)Gauge with sensor]

[(200004890)Gauge with sensor]

[(200002130)Only Sensor]

상품정보

브랜드 이름: ZMFJH
원산지: 중국
힌트 관련 화학: 없음
차량의 게재 위치: From
재료: Plastic
제품 길이: 52mm Air Fuel Ratio Gauge
특징: Waterproof
품목 너비: 52mm Voltmeter
국가/ 지역 제조: China
품목 높이: 52mm AFR Gauge
교류 부품 번호: BL0045-6238
제품 중량: 0.5kg
제조업체 부품 번호: Narrowband O2 Oxygen Sensor
OEM NO.: 0258006028
Item Name: 52mm AFR Gauge with Sensor

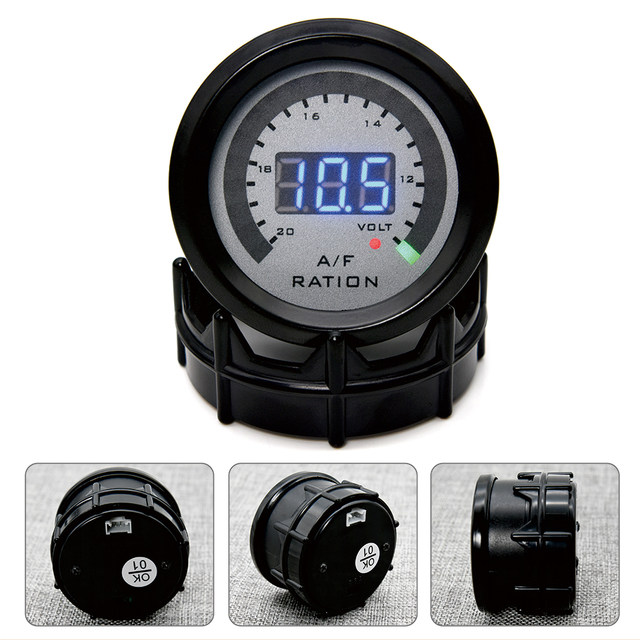

Style A: 52mm LED Digital Display with sensor

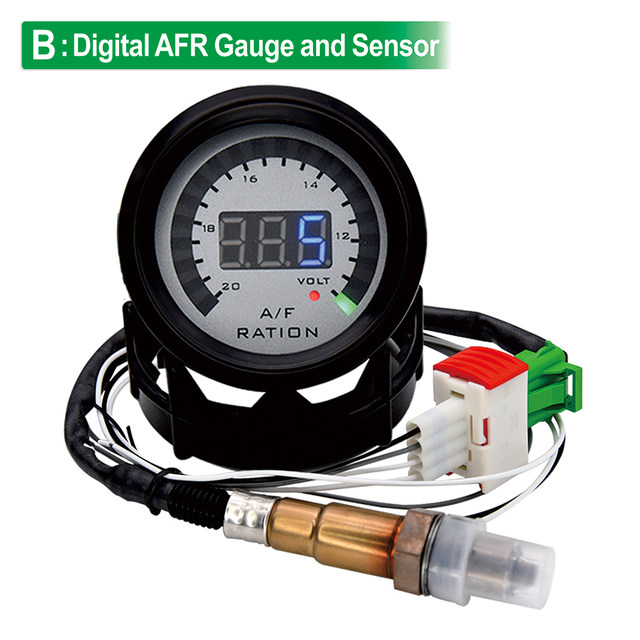

Style B: 52mm AFR Gauge +Voltage with Sensor
oxygen sensor OE number: 0258006028
Detection pressure range: 20:1~10:1
Heating Resistance: 8.5~9.5 ohm
Signal Line Voltage: 0-1V
Use Wrench: 22mm
metal meters: Smoke sensor
Oversea Warehouse: Russian Federation

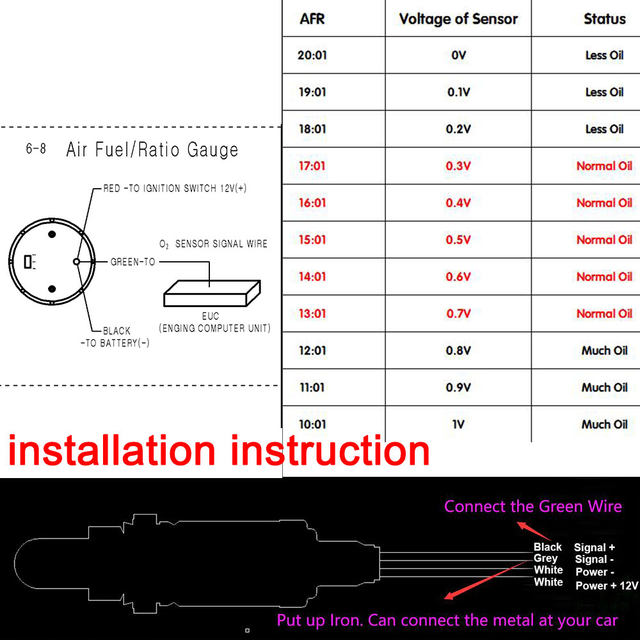

Air Fuel Ratio Gauge Specification:

- Easy to install,easy to use
- Universal fit for 12 volt car
- Black Case
- Black Gauge Ring
- Size: 52mm diameter or 2 inch gauge

Package Included:

1 x Air Fuel Ratio Gauge
1 x Users Manual In English

Oxygen Sensor Specification:

- Working Voltage: DC12V

- Signal Line Voltage: 0-1V

- Spiral: M18*1.5

- Use Wrench: 22mm

- Output Voltage: Maximum value ≥900mv/ minimum value ≤50mv.

- Response time: (600mV-300mV) ≤100ms.

- Response time: (300mV -600mV) ≤100ms.

- Starting time: ≤10s

- Heating resistance: 8.5~9.5Ω

- Internal resistance: 200~300Ω

Package included:

1* Narrowband Oxygen Sensor
