- 맞춤 가능 유무: YES
- 모델 번호: 5M
- 유형: 타이밍 벨트
- 표준 또는 비표준: 표준
- 재료: RUBBER
- 브랜드 이름: GKTOOLS
- 근원: CN (정품)
- Material: Rubber
- With standard component or not: Yes
- Type: Synchronous belt
- Bandwidth (mm): Other

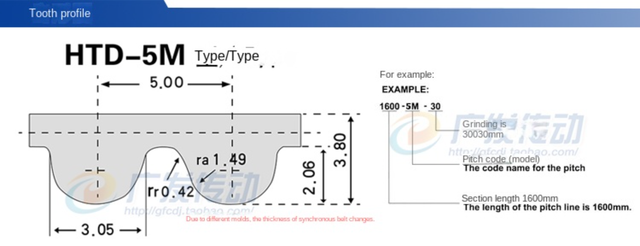

| GKTOOLS 5M 타이밍 벨트 | |||
| 5M 벨트 재질: 고무 색상: 검정 (벨트의 너비에 관계없이 절단 가능) | |||
| 내부 둘레 | 너비 | 내부 둘레 | 너비 |
| 120-220mm | 10/15/20/25/30mm | 955-1000mm | 10/15/20/25/30mm |
| 225-275mm | 10/15/20/25/30mm | 1010-1070mm | 10/15/20/25/30mm |
| 280-320mm | 10/15/20/25/30mm | 1075-1130mm | 10/15/20/25/30mm |
| 325-370mm | 10/15/20/25/30mm | 1135-1185mm | 10/15/20/25/30mm |
| 375-420mm | 10/15/20/25/30mm | 1190-1235mm | 10/15/20/25/30mm |
| 425-470mm | 10/15/20/25/30mm | 1240-1295mm | 10/15/20/25/30mm |
| 475-520mm | 10/15/20/25/30mm | 1300-1340mm | 10/15/20/25/30mm |
| 525-570mm | 10/15/20/25/30mm | 1350-1400mm | 10/15/20/25/30mm |
| 575-620mm | 10/15/20/25/30mm | 1420-1525mm | 10/15/20/25/30mm |
| 625-660mm | 10/15/20/25/30mm | 1530-1635mm | 10/15/20/25/30mm |
| 665-705mm | 10/15/20/25/30mm | 1650-1770mm | 10/15/20/25/30mm |
| 710-750mm | 10/15/20/25/30mm | 1780-1895mm | 10/15/20/25/30mm |
| 1900-2110mm | 10/15/20/25/30mm | ||
| 755-800mm | 10/15/20/25/30mm | 2140-2450mm | 10/15/20/25/30mm |
| 805-850mm | 10/15/20/25/30mm | 2460-2760mm | 10/15/20/25/30mm |
| 855-900mm | 10/15/20/25/30mm | 2800-3255mm | 10/15/20/25/30mm |
| 910-950mm | 10/15/20/25/30mm | 3300-4260mm | 10/15/20/25/30mm |
