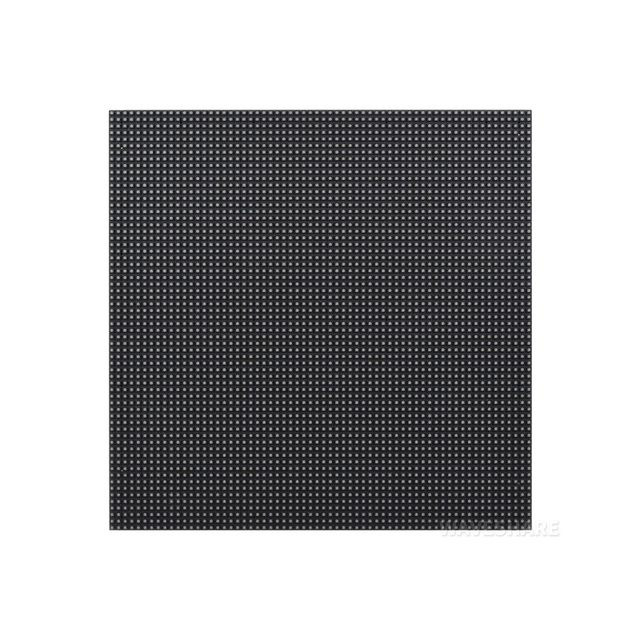

RGB Full-Color LED Matrix Panel 64×64 Pixels Display 3mm Pitch 4096 RGB LEDS Adjustable Brightness for Raspberry Arduino

【Description】

This product is a 64×64 full-color LED dot matrix display, with 4096 RGB LEDs onboard, 3mm pitch, supports Raspberry Pi and Arduino, etc. It provides supporting open source routines and tutorials, suitable for makers or electronics enthusiasts to get started learning, Or DIY secondary development into other desktop or wall-mounted display applications.


【Features】

1. Using 4096 RGB LEDs, full color display, adjustable brightness

2. The resolution is 64×64 and the dot pitch is 3mm, which can display text, color pictures or animation

3. The size is 192×192mm, the size is moderate, suitable for DIY some desktop or wall-mounted display applications

4. There are two HUB75 interfaces on the board, one input is used to connect to the controller; one output can be cascaded with multiple screens

5. Provide open source material tutorials, which can be used for Raspberry Pi, Pico, ESP32, Arduino and other development

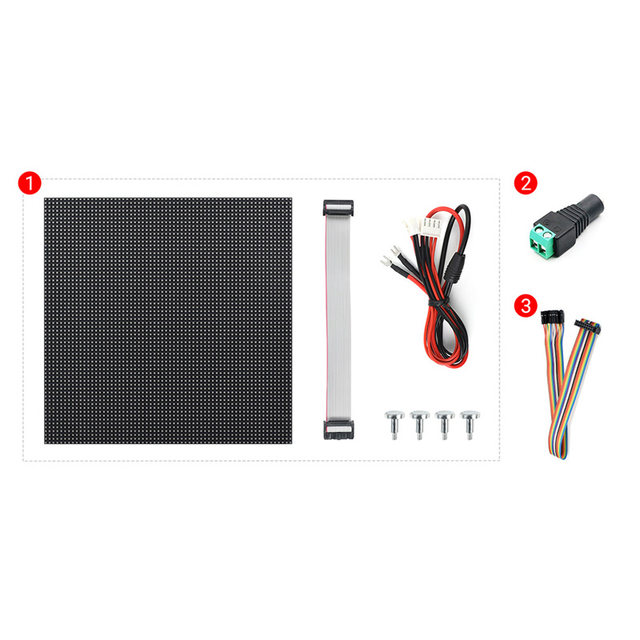

【Packing list】

1 x RGB-Matrix-P3-64x64 LED matrix and accessories

1 x Power supply terminal adapter

1 x 16P wire ~30cm



64×64 RGB LED Matrix Panel

4096 Individual RGB LEDs, 3mm Pitch

Supports Raspberry Pi And Arduino...

?
Features At A Glance

By nightfall, the dazzling neon lights of the streets and alleys illuminate the whole city making it more dynamic. Obviously, the Full-Color LED Matrix Panel is playing an important role. Maybe be on the doors of shops, maybe be on the bus or the taxi, you can always see?animations?or advertisement videos. Does it look cool? Why not have a try?

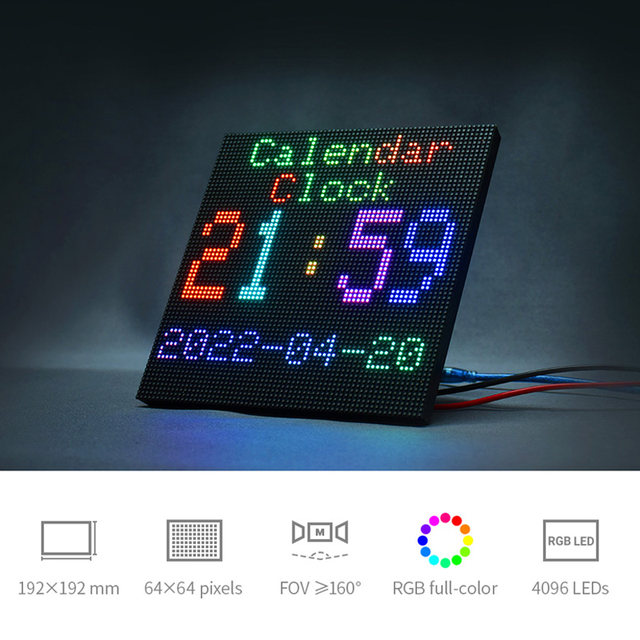

  • 4096 individual RGB LEDs, full-color display, adjustable brightness

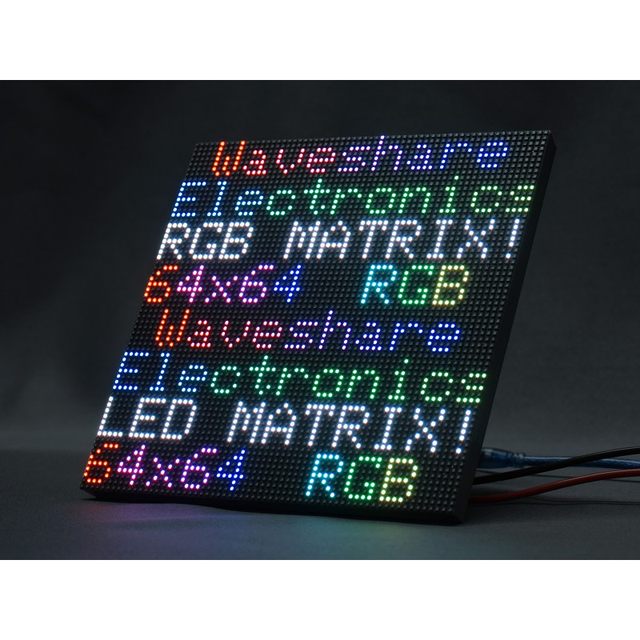

  • 64×64 pixels, 3mm pitch, allows displaying text, colorful image, or animation

  • 192×192mm dimensions, moderate size, suitable for DIY desktop display or wall mount display

  • Onboard two HUB75 header, one for controller data input, one for output, chain support

  • Provides open source development resources and tutorials, for use with Raspberry Pi, Arduino, and so on

Specifications

DIMENSIONS

192mm × 192mm

PIXELS

64×64=4096 DOTS

PITCH

3mm

PIXEL FORM

1R1G1B

VIEWING ANGLE

≥160°

CONTROL TYPE

synchronization

DRIVING

1/32 scan

HEADER

HUB75

POWER SUPPLY

5V / 4A (VH4 header input)

POWER

≤20W

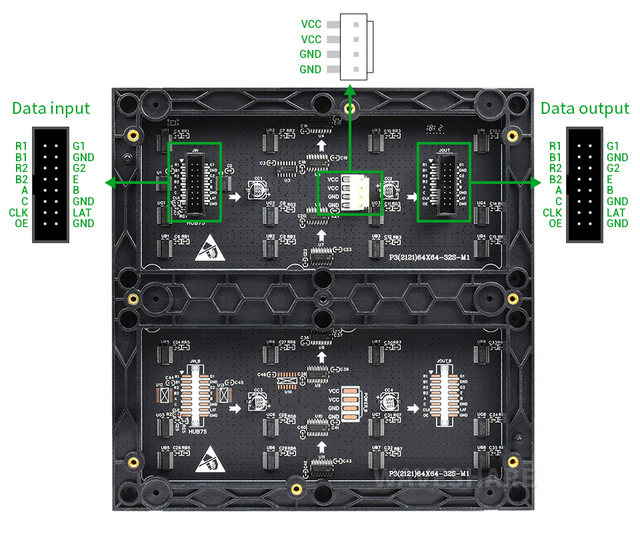

Header Definition

PIN

DESCRIPTION

PIN

DESCRIPTION

+5V

5V power input

GND

Ground

R1

R higher bit data

R2

R lower bit data

G1

G higher bit data

G2

G lower bit data

B1

B higher bit data

B2

B lower bit data

A

A line selection

B

B line selection

C

C line selection

D

D line selection

E

E line selection

CLK

clock input

LAT/STB

latch pin

OE

output enable

Chainable Design

Multi LED Matrix Panel Can Be Chained Together To Build A Larger Panel
Via HUB75 Input/Output Header

Each RGB LED matrix panel requires a standalone 5V/4A or above power supply, when they're chained to display.
Usage Scenarios

DIY Maker Desktop Or Wall Mount Display, Signboard, Environment Monitor...

Dimensions
