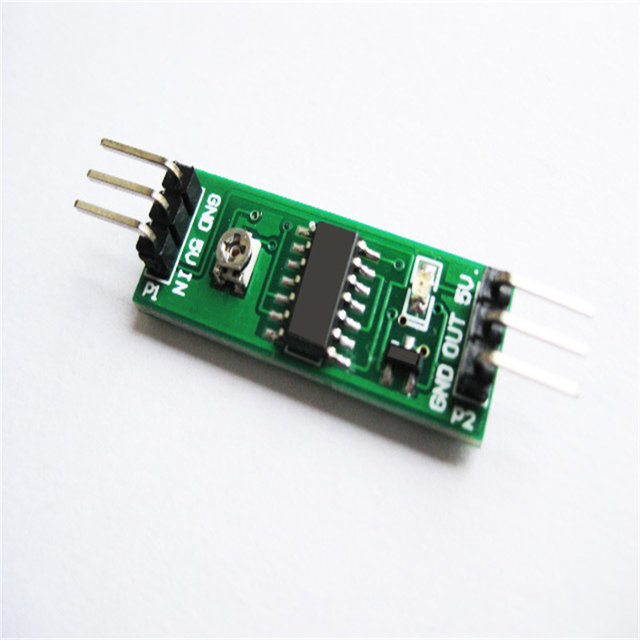

Module parameters

Input voltage: 4.0V-7.0V

Input current: less than 10mA

Output mode: digital;

Dimensions: (L) 32mm * (W) 12mm * (H) 8mm

Control mode: When the input RC signal pulse width is greater than the width set by the potentiometer, output low level.

Potentiometer: The width can be adjusted from 500us to 2200us.

Input interface P1:

GND: Power ground interface.

5V: Power +5V interface.

IN: RC signal input pin.

Output interface P2:

5V: Power +5V interface.

OUT: Signal output pin (can drive 200mA when output at low level).

GND: Power ground interface.
