[(107942490)RP2350-Touch-LCD2.8C]



»óÇ°Á¤º¸

  • ºê·£µå À̸§: spotpear
  • ȣȯ: RP2350B
  • ÈùÆ® °ü·Ã È­ÇÐ: ¾øÀ½
  • ¹èÅ͸® Æ÷ÇÔ: no
  • ¿ø»êÁö: Áß±¹
  • ºÎ¼Ó À¯Çü: LCD È­¸é
  • Choice: yes
  • semi_Choice: yes


?

RP2350

2.8-inch round LCD screen development board

480 ¡¿ 480 resolution, multiple peripheral interfaces

Product Features

This product is a high-performance, highly integrated microcontroller development board designed by Waveshare. It integrates large-capacity Flash, has an onboard 2.8-inch LCD screen, can run GUI interface programs such as LVGL smoothly, and combines a variety of peripheral interfaces. It is an ideal choice for rapid development of HMI applications based on RP2350.

  • RP2350B microcontroller chip designed with Raspberry Pi

  • Unique dual-core, dual-architecture, equipped with dual-core ARM Cortex-M33 processor and dual-core Hazard3 RISC-V processor, clock frequency up to 150MHz, allowing users to flexibly switch between the two architectures

  • Built-in 520KB SRAM and 16MB on-chip Flash

  • Onboard 2.8-inch LCD screen, 480 ¡¿ 480 resolution

  • Support I2C interface to control touch and interrupt

  • Supports USB1.1 host and slave devices

  • Supports low power sleep and hibernation modes

  • Drag-and-drop program downloading via USB recognition as mass storage

  • Onboard QMI8658 six-axis sensor, RTC clock sensor, Micro SD card slot and battery charging management module, etc.

  • Precise on-chip clocks and timers

  • Temperature Sensor

  • On-chip accelerated floating point library

  • 12 Programmable I/O (PIO) state machines for custom peripheral support

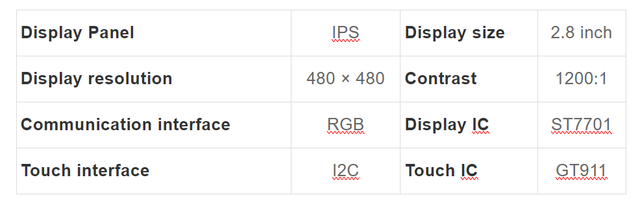

Display parameters

Application Scenario

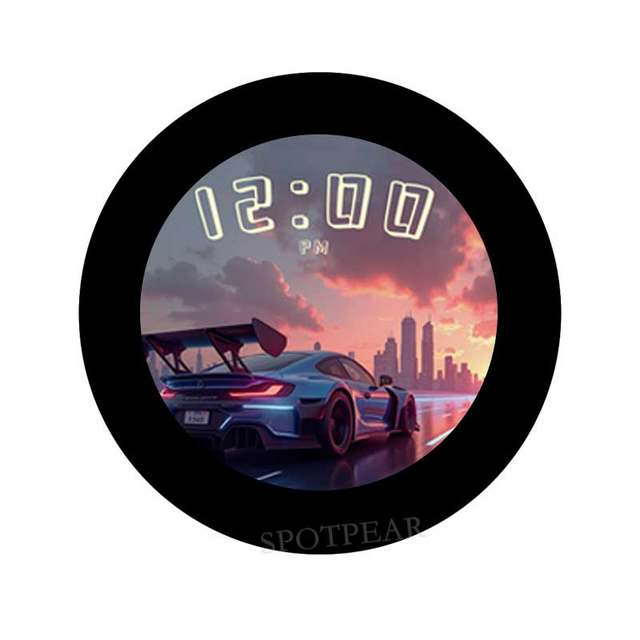

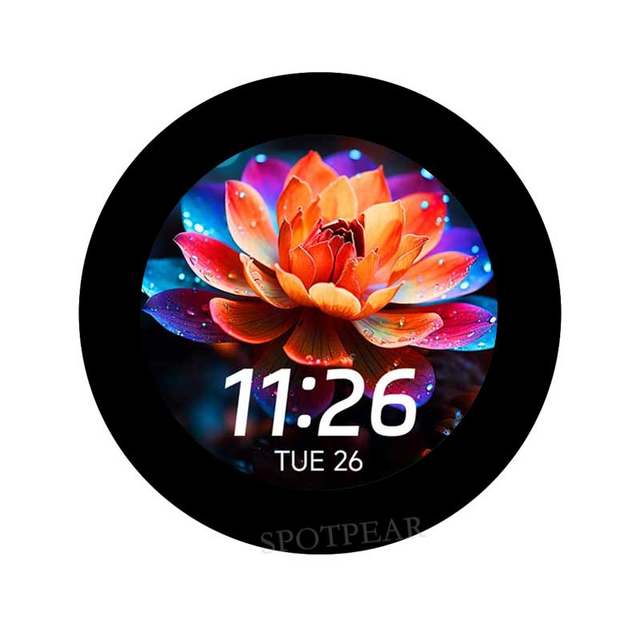

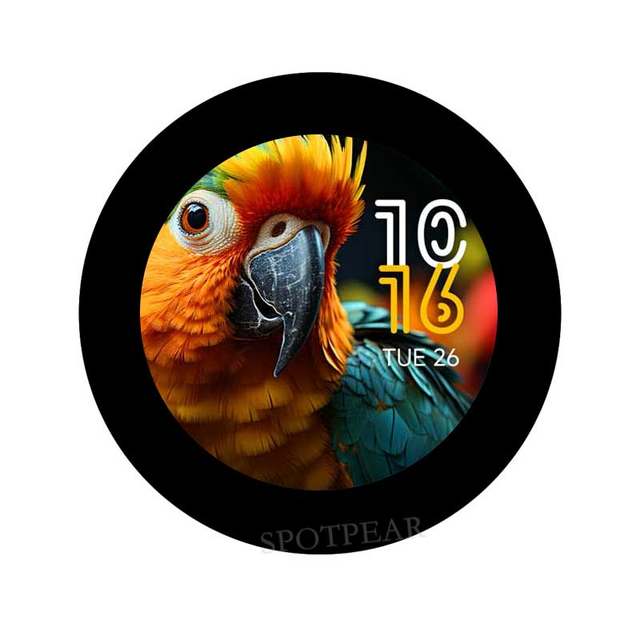

Display Panel

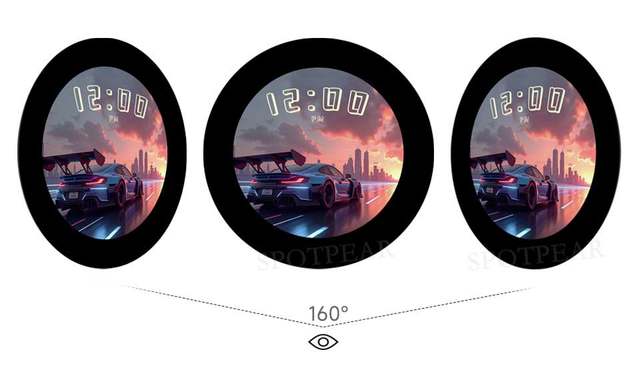

Excellent display performance, 160¡Æ viewing angle

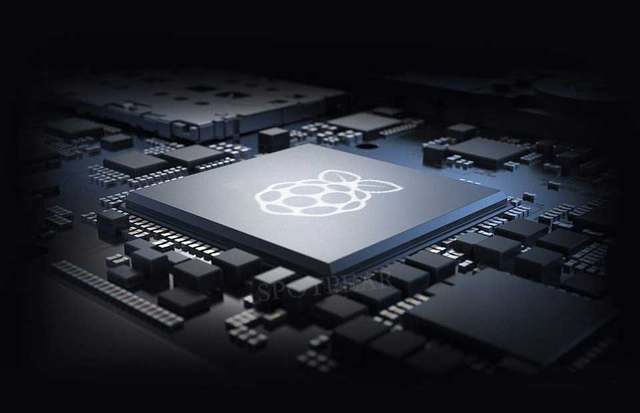

Unique dual-core, dual-architecture

The RP2350's unique dual-core, dual-architecture capability allows users to switch between a pair of industry-standard Arm Cortex-M33 cores and a pair of open hardware Hazard3 cores, enabling developers to experiment with the RISC-V architecture in a stable, well-supported environment.


Supports C/C++, MicroPython,

Arduino

Equipped with a complete SDK and open source tutorials, it is easy to get started and can be quickly embedded into the application

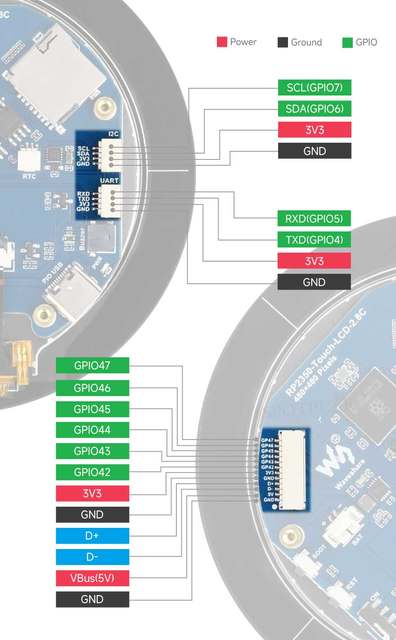

Support expansion of multiple peripherals

More expansion devices can be connected through interfaces such as GPIO, UART and I2C

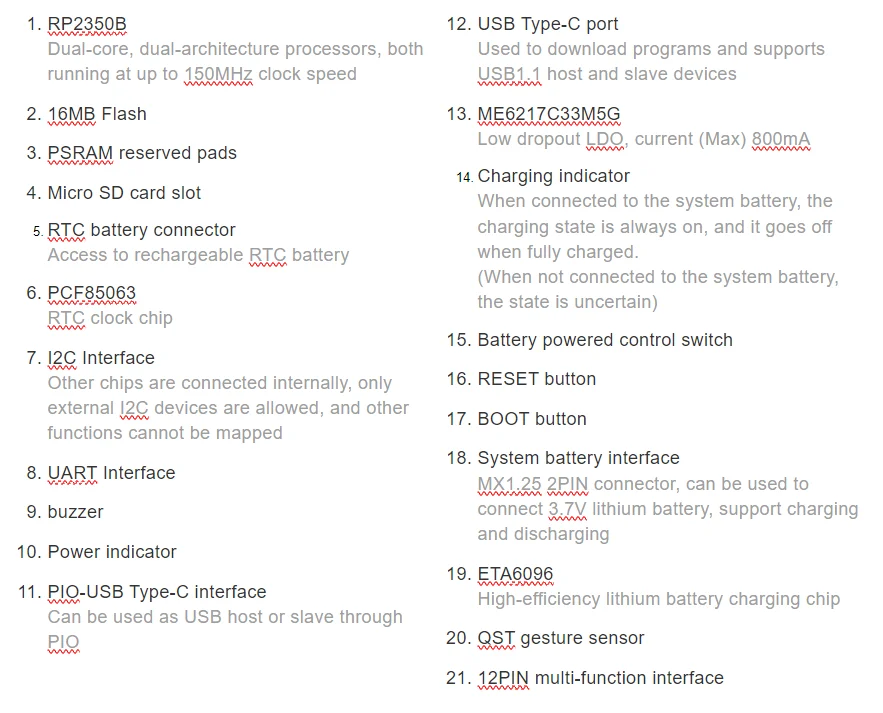

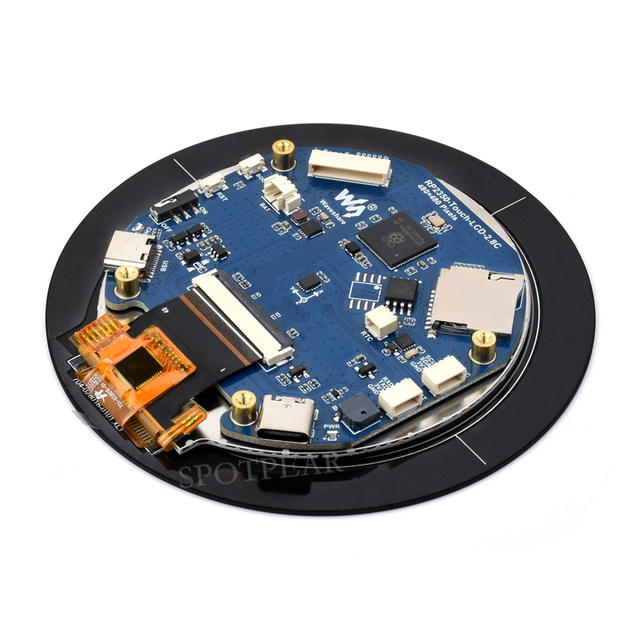

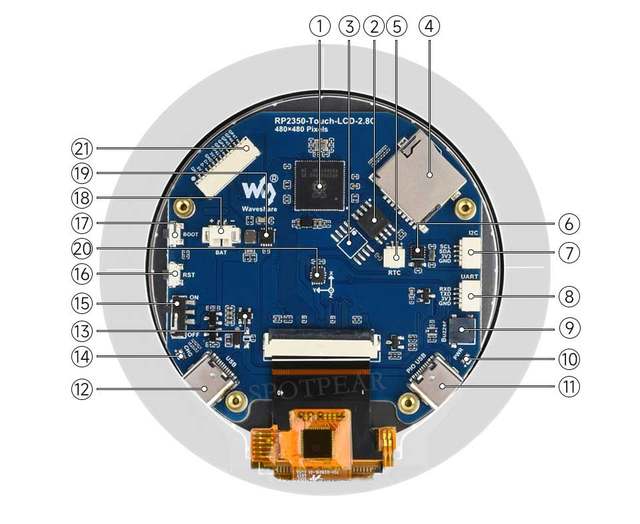

Resource Overview

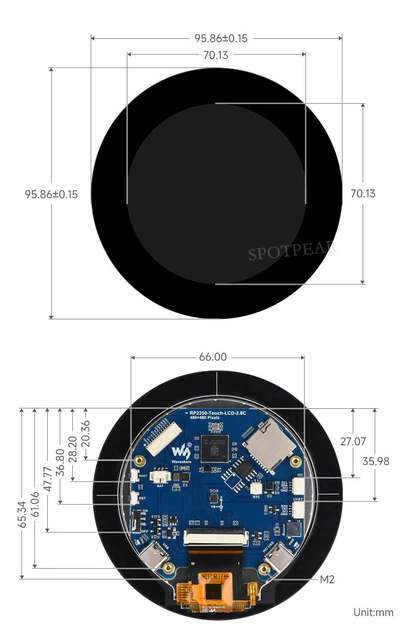

Product size

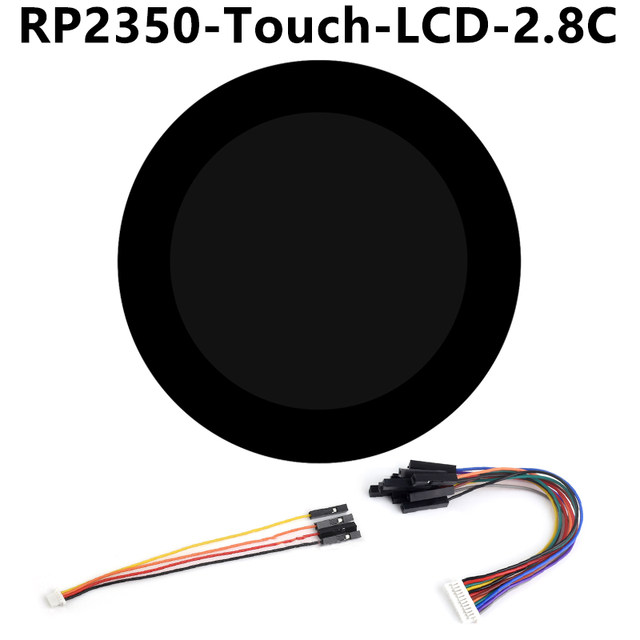

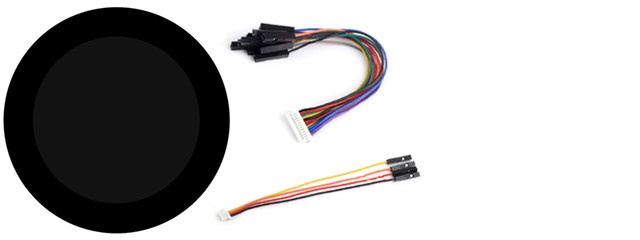

Package Contains


P2350-Touch-LCD-2.8C
